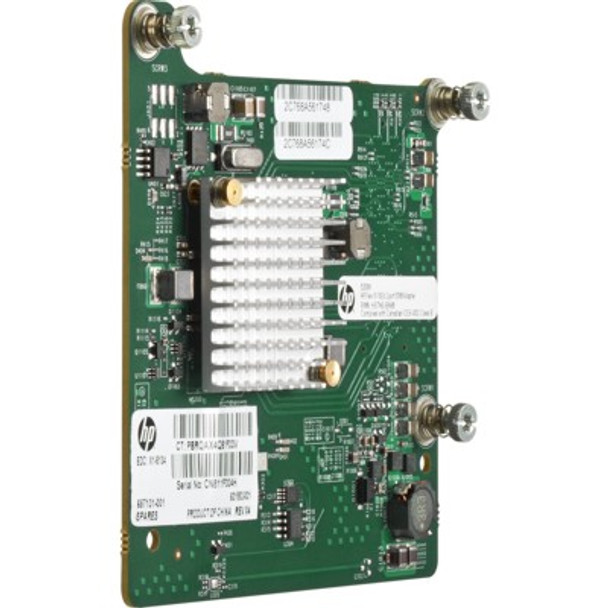

HPE 657131-001 10Gb 2Port PCIe 2.0 Flex-10 Network Adapter For G8 G9

HPE 657131-001 530M 10Gb Dual Port 10GBase-X PCI Express 2.0 X8 Flex-10 Gigabit Ethernet Network Adapter for ProLiant Gen8 Gen9 Servers (Brand New with 3 Years Warranty)

The HPE 657131-001 is a Dual-Port 10Gbps Adapter featuring the next generation, single-chip 10Gb Ethernet solution from Broadcom in a mezzanine form factor. This FlexibleLOM adapter delivers full line-rate performance across all ports with low power consumption and provides high performance Ethernet connectivity with support for HPE Virtual Connect Flex-10 interconnect technology, allowing the benefits of virtualization to extend beyond the server and into the rest of the infrastructure. This network card supports enterprise class features such as VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumbo frames, PXE boot, and virtualization features such as VMware NetQueue and Microsoft VMQ. This Low Profile Network Adapter comes with 3 Years Warranty.

Specifications

Brand: HPE
MPN: 657131-001

Option Part Number: 631884-B21
Spare Part Number: 657131-001

General

Device Type: Network adapter - 2 ports
Interface (Bus) Type: PCI Express 2.0 x8

Networking

Connectivity Technology: Wired
Data Link Protocol: 100Mb LAN, GigE, 10 GigE
Data Transfer Rate: 10 Gbps
Features: VLAN support, TCP/IP offloading, Quality of Service (QoS), Jumbo Frames support, PXE support, Receive Side Scaling (RSS)
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap

Processor/Memory

Processor: 1 x BCM57810S - Broadcom
RAM: 900 MB

Miscellaneous

Compliant Standards: FCC Class A certified, VCCI, EN55022, ICES-003, IEC 60950, EN55024, UL 60950, CSA 22.2 No. 60950, MIC, AS/NZS 3548, FCC CFR47 Part 15, WEEE, RoHS, ACA

System Requirements

OS Required: SunSoft Solaris 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, SuSE Linux Enterprise Server 11 SP1, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7, SuSE Linux Enterprise Server 10 SP4

Environmental Parameters

Min Operating Temperature: 32 °F
Max Operating Temperature: 131 °F
Humidity Range Operating: 10 - 90% (non-condensing)

Compatibility Information

Designed For

HPE ProLiant BL Series: BL420c Gen8 Gen9 (Gen8 Gen9) BL460c Gen8 Gen9 (Gen8 Gen9) BL465c Gen8 Gen9 (Gen8 Gen9) BL660c Gen8 Gen9 (Gen8 Gen9)

Contact us if you have any question about this product to verify the compatibility of this model with your current server or storage array.
