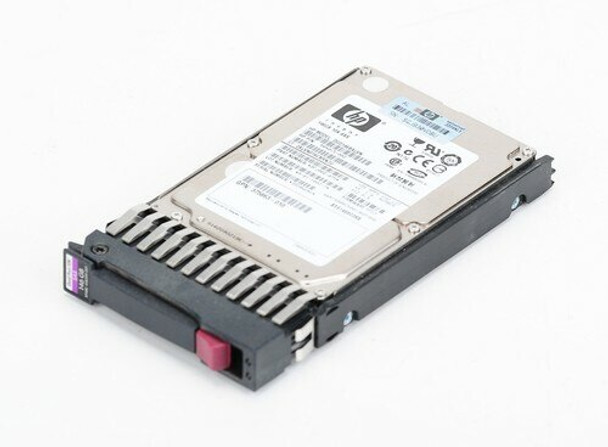

HPE 690819-B21 200GB 2.5in SAS-6G Enterprise Mainstream G4-G7 SSD

HPE 690819-B21 200GB 2.5inch Small Form Factor Mainstream Endurance SAS-6Gbps Enterprise Mainstream Solid State Drive for ProLiant Generation2 to Generation7 Servers (Refurbished - Grade A with 30 Days Warranty)

HPE Enterprise Solid State Drives (SSDs) deliver exceptional performance and endurance while reducing power consumption for customers with applications requiring high random read and write IOPs performance. You can prevent data loss and monitor the SSD life with HPE SmartSSD Wear Gauge compatibility in management tools.
Leveraging NAND Flash technology, they support HPE ProLiant servers including Gen9 and server storage platforms. Because they are available as Small Form Factor (SFF) and Large Form Factor (LFF) hot plug devices, non-hot plug SFF devices, and SFF Quick Release devices, you have great flexibility in your installation.
These drives deliver higher performance, better latency, and more power-efficient solutions when compared with traditional rotating media (HDDs). Plus they fit seamlessly into the existing HPE server infrastructure.

Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.

The HPE 690819-B21 Enterprise Mainstream Solid State Drive has a 2.5 inch form factor and a 6 Gbps external data transfer rate. It has a 200 GB capacity. This Small Form Factor Solid State Drive uses a SAS-6Gbps interface and has 30 Days Warranty.

Specifications

Brand: HPE
MPN: 690819-B21

Option Part Number: 690819-B21

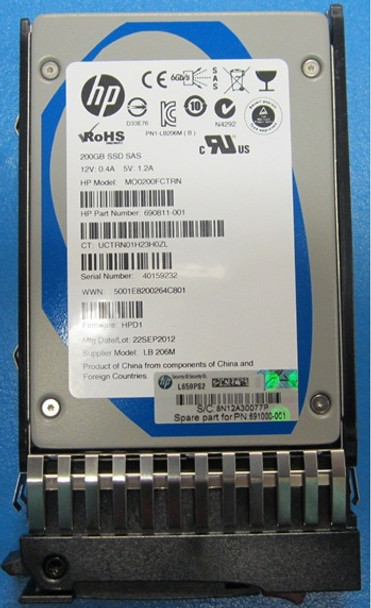

Spare Part Number: 691000-001
Model Number: MO0200FCTRN
Assembly Number: 690811-001

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 200 GB
Form Factor: 2.5 inch SFF
Interface: SAS 6 Gbps
Plug Type: Hot Pluggable
Carrier Type: Standard Carrier
Workload Type: Enterprise Mainstream
Features: Mainstream Endurance
NAND Flash Memory Type: Multi-level cell (MLC)
Bundled with: HPE Standard Carrier
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15.00 mm

Performance

Drive Transfer Rate: 6 Gb/sec (external)
Random Reads: 46200 IOP/s
Random Writes: 9800 IOP/s
Sequential Reads: 370MiB/s
Sequential Reads: 150MiB/s

Expansion & Connectivity

Interfaces: 1 x SAS 6 Gb/s
Compatible Bay: 2.5" SFF

Power

Power Consumption: 9.00 Watt

Compatibility Information

Designed for

HPE ProLiant BL Series: BL20p (Gen4) BL45p (Gen2) BL460c (Gen6 Gen7) BL465c (Gen1 Gen5 Gen6 Gen7) BL480c (BL620c Gen7) BL680c (Gen5 Gen6 Gen7) BL685c (Gen6 Gen7) WS460c (Gen6 Gen7)

HPE ProLiant DL Series: DL1000 DL120 (Gen6 Gen7) DL160 (Gen6 Gen7) DL160se (Gen6 Gen7) DL165 (Gen6 Gen7) DL170e (Gen6 Gen7) DL170h (Gen6 Gen7) DL180 (Gen6 Gen7) DL320 (Gen6 Gen7) DL360 (Gen4p Gen5 Gen6 Gen7) DL365 (Gen1 Gen5 Gen6 Gen7) DL370 (Gen6 Gen7) DL380 (Gen4 Gen5 Gen6 Gen7) DL385 (Gen1 Gen2 Gen3 Gen4 Gen5/Gen5p Gen6 Gen7) DL580 (Gen3 Gen4 Gen5 Gen6 Gen7) DL585 (Gen2 Gen3 Gen4 Gen6 Gen7) DL785 (Gen6)

HPE ProLiant ML Series: ML110 (Gen7) ML350 (Gen5 Gen6 Gen7) ML370 (Gen5 Gen6 Gen7) ML570 (Gen3 Gen4 Gen5)

HPE ProLiant SL Series: SL390s (Gen6 Gen7)

HPE Storage Systems: D2700 MSA50 MSA60 MSA70

HPE Storage Systems: X1500 (Gen2) X16000 (Gen2) X1800 (Gen2) X3400 (Gen2) X3800 (Gen2)

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
