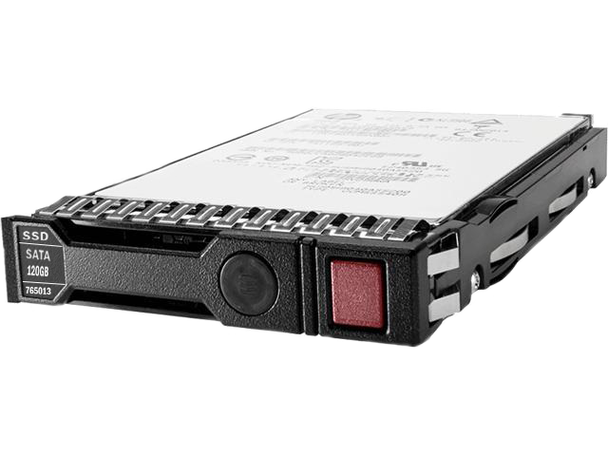

HPE 764913-001-SC 120GB 2.5in VE SATA-6G Enterprise Value G8 G9 SSD

HPE 764913-001-SC 120GB 2.5inch Small Form Factor Value Endurance SATA-6Gbps Smart Carrier Enterprise Value Solid State Drive for ProLiant Gen8 Gen9 Servers (Refurbished - Grade A with 30 Days Warranty)

HPE Enterprise Solid State Drives (SSDs) deliver exceptional performance and endurance while reducing power consumption for customers with applications requiring high random read and write IOPs performance. You can prevent data loss and monitor the SSD life with HPE SmartSSD Wear Gauge compatibility in management tools.

Leveraging NAND Flash Technology, they support HPE ProLiant servers including Gen9 and server storage platforms. Because they are available as Small Form Factor (SFF) and Large Form Factor (SFF) hot plug devices, non-hot plug SFF devices, and SFF Quick Release devices, you have great flexibility in your installation.

These Enterprise Value Solid State Drives deliver higher performance, better latency, and more power-efficient solutions when compared with traditional rotating media (HDDs). Plus they fit seamlessly into the existing HPE server infrastructure.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

The HPE 764913-001-SC Enterprise Value Solid State Drive has a 2.5 inch form factor and a 6 Gbps data transfer rate. It has a 120 GB capacity. This Small Form Factor Value Endurance Solid State Drive uses a SATA-6Gbps interface and has 30 Days Warranty.

Specifications

Brand: HPE
MPN: 764913-001-SC

Option Part Number: 764923-B21
Spare Part Number: 765013-001
Model Number: VK0120GEFJE
Assembly Number: 764913-001

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 120 GB
Interface: SATA 6Gbps
Form Factor: 2.5 inch SFF
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
NAND Flash Memory Type: eMLC
Workload Type: Enterprise Value
Features: Value Endurance, Power Loss Protection (PLP)
Bundled with: HPE Smart Carrier
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15 mm

Performance

Drive Transfer Rate: 6 Gb/sec (external)
Endurance DWPD (Drive Writes Per Day): 0.3
MAX Seq. Reads Throughput (MiB/s): 430
MAX Seq. Writes Throughput (MiB/s): 205
Random Read Average Latency uSec (4KiB,Q1): 140
Random Write Average Latency uSec (4KiB,Q1): 42
Random Read IOPS (4KiB,Q=16): 58000
Random Write IOPS (4KiB,Q=16): 24000
MAX Random Read IOPS (4KiB): 72000@Q32
MAX Random Write IOPS (4KiB): 2400@Q4
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 28000
4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 22500

Expansion & Connectivity

Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 1.08 Watt
Random Read: 1.94 Watt
Random Write: 1.94 Watt
Sequential Read: 2.25 Watt
Sequential Write: 2.92 Watt
Random Read/Write: 1.94 Watt

Compatibility Information

Designed for

HPE ProLiant BL Series: BL420c (Gen8 Gen9) BL460c (Gen8 Gen9) BL465c (Gen8 Gen9) BL660c (Gen8 Gen9)

HPE ProLiant DL Series: DL20 (Gen9) DL60 (Gen9) DL80 (Gen9) DL120 (Gen8 Gen9) DL160 (Gen8 Gen9 G10) DL180 (Gen8 Gen9) DL320e (Gen8 Gen9) DL360 (Gen8 Gen9) DL360e (Gen8 Gen9) DL360p (Gen8 Gen9) DL380 (Gen8 Gen9) DL380e (Gen8 Gen9) DL380p (Gen8 Gen9) DL388 (Gen9) DL385p (Gen8 Gen9) DL560 (Gen8 Gen9) DL580 (Gen8 Gen9)

HPE ProLiant ML Series: ML110 (Gen8 Gen9) ML150 (Gen8 Gen9) ML310e (Gen8 Gen9) ML350 (Gen8 Gen9) ML350e (Gen8 Gen9) ML350p (Gen8 Gen9)

HPE ProLiant SL Series: SL230s (Gen8 Gen9) SL250s (Gen8 Gen9) SL270s (Gen8 Gen9)

HPE ProLiant XL Series: XL170r (Gen9) XL190r (Gen9) XL220a (Gen9) XL230a (Gen9) XL250a (Gen9)

HPE Storage Arrays: D3700 D2220sb StoreEasy 1830 1840

HPE Synergy Systems: D3940 Storage Module

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
