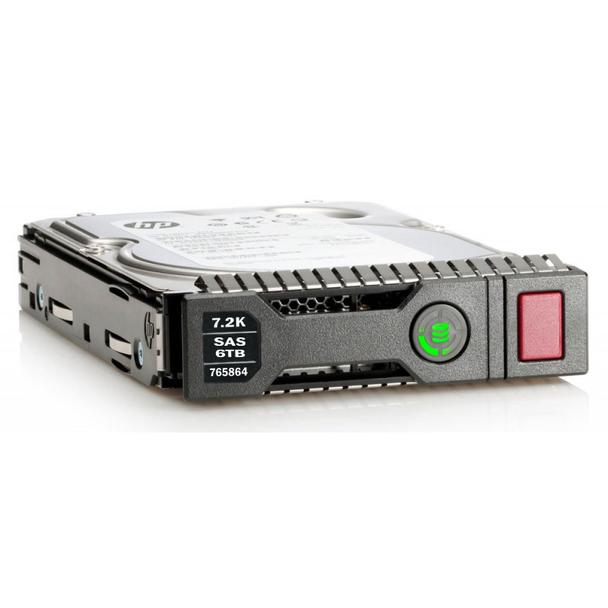

HPE 765259-B21 6TB 7200RPM 3.5in SAS-12G SC Midline G8 G9 G10 HDD

HPE 765259-B21 6TB 7200RPM 3.5inch Large Form Factor SAS-12Gbps Smart Carrier Midline Hard Drive for ProLiant Gen8 Gen9 Gen10 Servers (New Bulk Pack with 90 Days Warranty)

HPE Server Midline Hard Drives deliver the highest capacity, performance and reliability to your datacenter applications. Midline hard drives allow you to store more data without sacrificing performance or reliability; they are ideal to store all your bulk storage requirements. HPE Server Midline Hard Drives are available in both 3.5-inch Large Form Factor (LFF) and 2.5-inch Small Form Factor (SFF) and ship with a standard one-year warranty. All HPE hard drives pass a rigorous qualification process, which certify that every drive is proven to perform in your HPE ProLiant Server environments. Before final certification, all HPE Server Midline Hard Drives are optimized for compatibility and functionality, including support of SMART and HPE Systems Insight Manager.

Designed and Engineered to Provide High Capacity and Reliable Secure Storage
HPE Server Midline Hard Drives are ideal for the growing volume of digital content, bulk data storage, cloud and web infrastructure environments. Broad portfolio of optimized solutions provide up to 12 TB of storage, and growing in a single device. Rotational Vibration Sensors deliver enhanced rotational vibration tolerance that provides enterprise class reliability in midline drives. Available in 2.5-inch Small Form Factor (SFF) and 3.5-inch Large Form Factor (LFF) in a wide variety of capacity points. Prevent unauthorized access to your data with HPE Digitally Signed Firmware. It provides the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.

The HPE 765259-B21 Hard Drive has a 3.5 inch form factor and a 600 MBps external data transfer rate. It has a spindle speed of 7200 RPM and a 6 TB capacity. This drive uses a SAS-12Gbps interface and has 90 Days Warranty.

Specifications

Brand: HPE
MPN: 765259-B21

Option Part Number: 765259-B21
Spare Part Number: 765864-001
Model Number: MB6000JEFND
Assembly Number: 765252-002

General

Device Type: Hard Drive- Hot-Swap
Capacity: 6 TB
Interface: SAS-12Gbps
Form Factor: 3.5 inch LFF
Plug Type: Hot Pluggable
Drive Technology (Fill): Air
Features: Advanced format 512e
Bundled with: HPE SmartDrive carrier
Workload: Midline
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy

Performance

Spindle Speed: 7200 RPM
External Data Transfer Rate: 600 MBps
Bytes per Sector: 512

Product Dimensions

Width: 3.00 inch
Depth: 4.70 inch
Height: 0.60 inch

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 3.5" LFF

Compatibility Information

Designed for

HPE ProLiant BL Series: ProLiant BL420c (Gen8 Gen9) BL460c (Gen8 Gen9) BL465c (Gen8 Gen9)

HPE ProLiant DL Series: DL20 (Gen9) DL60 (Gen9) DL80 (Gen9) DL120 (Gen8 Gen9) DL160 (Gen8 Gen9) DL180 (Gen8 Gen9) DL320e (Gen8 Gen9) DL360e (Gen8 Gen9) DL360p (Gen8 Gen9) DL380e (Gen8 Gen9) DL380p (Gen8 Gen9) DL388 (Gen9)

HPE ProLiant ML Series: ML110 (Gen8 Gen9) ML150 (Gen8 Gen9) ML310e (Gen8 Gen9) ML350 (Gen8 Gen9) ML350e (Gen8 Gen9)

HPE ProLiant SL Series: SL200t (Gen8 Gen9) SL230s (Gen8 Gen9) SL250s (Gen8 Gen9) SL2500 SL4550 (Gen8 Gen9) SL4545 (Gen8 Gen9) SL454x

HPE Storage arrays: D3600 D3700

HPE StoreEasy: 1430 1440 1530 1540 1630 1640

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
