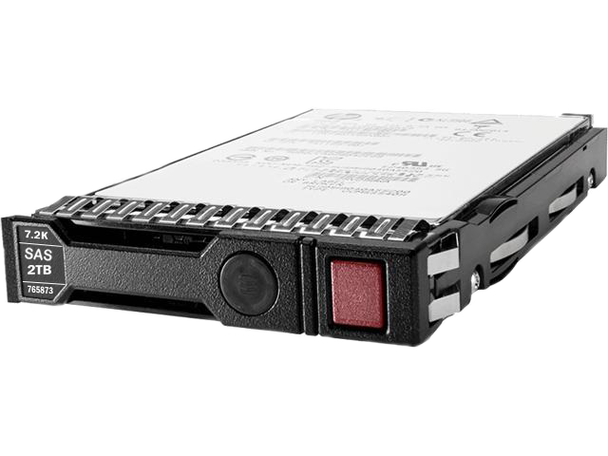

HPE 765452-002-SC 2TB 7200RPM 2.5in DS SAS-12G Midline G9 G10 HDD

HPE 765452-002-SC 2TB 7200RPM 2.5inch SFF Digitally Signed Firmware 512e SAS-12Gbps Smart Carrier Midline Hard Drive for ProLiant Gen9 Gen10 Servers (Brand New with 3 Years Warranty)

HPE Server Midline Hard Drives deliver the highest capacity, performance and reliability to your datacenter applications. Midline hard drives allow you to store more data without sacrificing performance or reliability; they are ideal to store all your bulk storage requirements. HPE Server Midline Hard Drives are available in both 3.5-inch Large Form Factor (LFF) and 2.5-inch Small Form Factor (SFF) and ship with a standard one-year warranty. All HPE hard drives pass a rigorous qualification process, which certify that every drive is proven to perform in your HPE ProLiant Server environments. Before final certification, all HPE Server Midline Hard Drives are optimized for compatibility and functionality, including support of SMART and HPE Systems Insight Manager.

Engineered to Deliver High Performance and Reliability Across HPE server and Storage Platforms
HPE HDDs are tuned and tested with on-going quality monitoring throughout their lifecycle
HPE optimizes HDD firmware for predictable and consistent HDD performance
HPE’s industry-leading rigorous testing and qualification program is backed by 2.4 million test hours
Pre-failure Alerts with HPE Smart Array Controller, Systems Insight Manager, and HPE Smart firmware
3x faster firmware and software updates with HPE Service Pack for ProLiant (HPE SPP)

HPE HDDs are Designed to Deliver Enterprise Class Security at Both Hardware and Firmware Levels
HPE Digitally Signed Firmware helps prevent against malicious attacks
HPE Smart Array SR Secure Encryption is a FIPS 140-2 Level 1 validated enterprise class controller-based encryption solution for data-at-rest on all SAS/SATA drives
HPE Smart Carriers report drive activity and health

HPE Supports Your Data-Driven Applications With a Broad Portfolio of HDDs
HPE Server Midline Hard Drives are ideal for the growing volume of digital content, bulk data storage, cloud and web infrastructure environments
Broad portfolio of HDDs, optimized for HPE server platforms, provide up to 14 TB of storage
Available in 2.5-inch Small Form Factor and 3.5-inch Large Form Factor in a wide variety of capacity points
Simplify HDD planning and standardize HDDs across HPE server and storage solutions
Common HDD carriers offer consistency and compatibility across HPE server platforms

Support Entry/SMB servers with value priced drives
HPE Server Midline Hard Drives have lower start-up costs without sacrificing reliability at the lowest $/GB.
Non-mission critical hard drives at the lowest $/GB.
6 Gb/sec data transfer rate to support existing servers.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.

The HPE 765452-002-SC Midline Hard Drive has a 2.5 inch form factor and a 12 Gbps external data transfer rate. It has a spindle speed of up to 7200 RPM and 2 TB capacity. This Small Form Factor Digitally Signed Firmware Hard Drive uses a SAS-12Gbps (Serial attached SCSI) interface and comes with 3 Years Warranty.

Specifications

Brand: HPE
MPN: 765452-002-SC

Option Part Number: 765466-B21
Spare Part Number: 765873-001
Model Number: MM2000JEFRC
Assembly Number: 765452-002
HPE GPN: 765470-004

General

Device Type: Hard Drive - Hot-Swap
Capacity: 2 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Format Type: 512e
Carrier Type: Smart Carrier (SC)
Workload Type: Midline
Plug Type: Hot Plug
Features: Advanced format 512e, Digitally Signed Firmware
Bundled with: HPE SmartDrive carrier

Performance

Drive Transfer Rate: 12 Gb/sec (external)
Average Seek Time: 8.7 ms
Max Seek Time: 17.16 ms
Track-to-Track Seek Time: 0.7 ms
Spindle Speed: 7200 RPM
OD Media Rate, Max Sequential Throughput (MiB/s): 130
128Kib Random Rd (IOPs): 105
128Kib Random 70% RD/ 30% WT (IOPs): 105
128Kib Random 50% RD/ 50% WT (IOPs): 105

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF

Power

Idle Time: 2.6 Watts
Random R/W: 3.6 Watts
Sequential Read: 4.4 Watts
Sequential Write: 3.9 Watts

Dimensions

Width: 3.10 inch
Depth: 4.70 inch
Height: 0.63 inch

Environmental Parameters

Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F

Compatibility Information

Designed for

HPE ProLiant BL Series: BL460c Gen10 (2.5 inch), BL660c Gen9 (2.5 inch)

HPE ProLiant DL Series: DL20 Gen9 (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL20 Gen9 Solution (2.5 inch), DL360 Gen10 (2.5 inch), DL360 Gen10 Base (2.5 inch), DL360 Gen10 Entry (2.5 inch), DL360 Gen10 High Performance (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Performance (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL380 Gen10 (2.5 inch), DL380 Gen10 Base (2.5 inch), DL380 Gen10 Entry (2.5 inch), DL380 Gen10 High Performance (2.5 inch), DL380 Gen10 Performance (2.5 inch), DL380 Gen10 Solution (2.5 inch), DL385 Gen10 (2.5 inch), DL385 Gen10 Base (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 High-Performance (2.5 inch), DL385 Gen10 Performance (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL388 Gen9 (2.5 inch), DL388 Gen9 Base (2.5 inch), DL560 Gen10 (2.5 inch), DL560 Gen10 Base (2.5 inch), DL560 Gen10 Entry (2.5 inch), DL560 Gen10 Performance (2.5 inch), DL560 Gen9 (2.5 inch), DL560 Gen9 Base (2.5 inch), DL560 Gen9 Entry (2.5 inch), DL560 Gen9 Performance (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch)

HPE ProLiant ML Series: ML110 Gen10 (2.5 inch), ML110 Gen10 Performance (2.5 inch), ML110 Gen10 Solution (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML30 Gen9 (2.5 inch), ML30 Gen9 Base (2.5 inch), ML30 Gen9 Entry (2.5 inch), ML30 Gen9 Performance (2.5 inch), ML30 Gen9 Solution (2.5 inch), ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch)

HPE ProLiant XL Series: XL230a Gen9 Compute Tray (2.5 inch), XL230a Gen9 Compute Tray (12G) (2.5 inch), XL230a Gen9 Compute Tray (6G) (2.5 inch), XL230a Gen9 NHPE Compute Tray (12G), XL230k Gen10 Compute Tray (2.5 inch), XL250a Gen9 Accelerator Tray (2.5 inch)

HPE Synergy 480 Gen10 Base Compute Module (2.5 inch), 480 Gen10 Entry Compute Module (2.5 inch), 480 Gen10 Performance Compute Module (2.5 inch), 480 Gen10 Premium Backplane Compute Module (2.5 inch), 480 Gen10 Standard BackPlane Compute Module (2.5 inch), 480 Gen10 w/o Drives Compute Module (2.5 inch)

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
