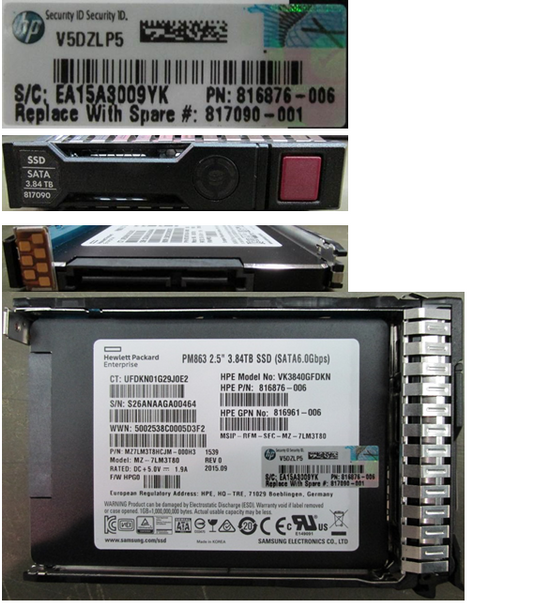

HPE 816876-006-SC 3.84TB 2.5in SATA-6G Read Intensive G8 G9 G10 SSD

HPE 816876-006-SC 3.84TB 2.5inch Small Form Factor (SFF) SATA-6Gbps Smart Carrier Read Intensive Solid State Drive for ProLiant Generation8 Generation9 Generation10 Servers (New Bulk Pack with 90 Days Warranty)

HPE Server Read Intensive (RI) Solid State Drives (SSDs) deliver high performance and endurance for applications requiring high random read IOPS performance. HPE (RI) SSDs typically have an endurance of <1 drive writes per day. All HPE SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high performing drives. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that drive firmware comes from a trusted source. The self-describing icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a "do not remove" button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge compatibility in management tools, allowing you to determine if any drives are at risk of failure.

High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
HPE solid-state drives are ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.
Achieve higher IOPs to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.
12 Gb/s SAS, 6 Gb/s SATA, NVMe, M.2, and M.2 Enablement Kits.

HPE Value SAS SSDs Offer Twice the IOPS of SATA SSDs, Significantly Improving Workload Performance
HPE Value SAS solid-state drives (SSDs) support 12 Gbs, versus SATA SSDs at 6 Gbs.
Optimized for enterprise application workloads, HPE Value SAS SSDs allow you to do more work with fewer servers by improving and consolidating transactional database workloads.
HPE Value SAS SSDs allow you to reduce operating costs for storing, powering and maintaining servers, as well as reducing your data center footprint.
Available in a variety of storage capacities, HPE Value SAS SSDs are the perfect choice for supporting read-intensive and mixed-use applications.

HPE Multi Vendor SSDs Offer Longer SKU Lifecycles and Immediate Availability on SATA SSDs
HPE enhanced its extensive SSD portfolio with a Multi Vendor SSD SKU offering that allows for extended SKU lifecycles, immediately available supply and preferably priced SATA SSDs.
HPE Multi Vendor SSD SKU offering ensures the SATA SSD selected, delivers the minimum level of performance published, or better.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

The HPE 816876-006-SC Read Intensive Solid State Drive has a 2.5 inch form factor and a 6 Gbps external data transfer rate. It has a 3.84 TB capacity. This Small Form Factor Read Intensive Solid State Drive uses a SATA-6Gbps interface and has 90 Days Warranty.

Specifications

Brand: HPE
MPN: 816876-006-SC

Option Part Number: 816929-B21
Spare Part Number: 817090-001
Model Number: VK3840GFDKN
Assembly Number: 816876-006
HPE GPN Number: 816961-006

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 3.84 TB
Form Factor: 2.5 inch SFF
Interface: SATA 6Gbps
NAND Flash Memory Type: Multi-level cell (MLC)
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
Workload Type: Read Intensive
Features: Temperature Sensor, End-to-End Data Protection, Enterprise Power-Loss Protection, V-NAND Technology, Power Failure Protection
Bundled with: HPE SmartDrive Carrier
Height: 15 mm

Performance

Endurance DWPD (Drive Writes Per Day): 1.4
Drive Transfer Rate: 600 MBps (external)
Internal Data Rate (Read): 540 MBps
Internal Data Rate (Write): 480 MBps
4KB Random Read IOPS : 99000
4KB Random Write IOPS : 18000

Expansion & Connectivity

Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 1.30 Watt
Active Time: 4.1 Watt

Miscellaneous

Compliant Standards: RoHS

Environmental Parameters

Min Operating Temperature: 32 °F
Max Operating Temperature: 158 °F

Compatibility Information

Designed for

HPE Apollo Series: 4200 Gen9 for Google (2.5 inch)

HPE ProLiant DL Series: DL160 Gen8 (2.5 inch), DL160 Gen8 Base (2.5 inch), DL160 Gen8 Entry (2.5 inch), DL160 Gen8 Performance (2.5 inch), DL180 Gen9 (2.5 inch), DL180 Gen9 Base (2.5 inch), DL180 Gen9 Entry (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL20 Gen9 (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL320e Gen8 (2.5 inch), DL320e Gen8 Base (2.5 inch), DL320e Gen8 Entry (2.5 inch), DL320e Gen8 Performance (2.5 inch), DL320e Gen8 Special Server (2.5 inch), DL320e Gen8 v2 (2.5 inch), DL320e Gen8 v2 Base (2.5 inch), DL320e Gen8 v2 Entry (2.5 inch), DL320e Gen8 v2 Performance (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 High Performance (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL385p Gen8 (2.5 inch), DL385p Gen8 Dedicated Workload (2.5 inch), DL385p Gen8 Entry (2.5 inch), DL385p Gen8 Maximized Consolidation (2.5 inch), DL385p Gen8 Storage (2.5 inch), DL385p Gen8 Storage Centric (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 SAP HANA Scale-out Base Configuration (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch), DL60 Gen9 (2.5 inch), DL60 Gen9 Base (2.5 inch), DL60 Gen9 Entry (2.5 inch), DL80 Gen9 (2.5 inch), DL80 Gen9 Base (2.5 inch), DL80 Gen9 Entry (2.5 inch)

HPE ProLiant ML Series: ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML150 Gen9 (2.5 inch), ML150 Gen9 Base (2.5 inch), ML150 Gen9 Entry (2.5 inch), ML150 Gen9 Performance (2.5 inch), ML310e Gen8 (2.5 inch), ML310e Gen8 Base (2.5 inch), ML310e Gen8 Entry (2.5 inch), ML310e Gen8 Performance (2.5 inch), ML310e Gen8 v2 (2.5 inch), ML310e Gen8 v2 Base (2.5 inch), ML310e Gen8 v2 Entry (2.5 inch), ML310e Gen8 v2 Performance (2.5 inch)

HPE ProLiant XL Series: XL250a Gen9 Accelerator Tray (2.5 inch)

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
