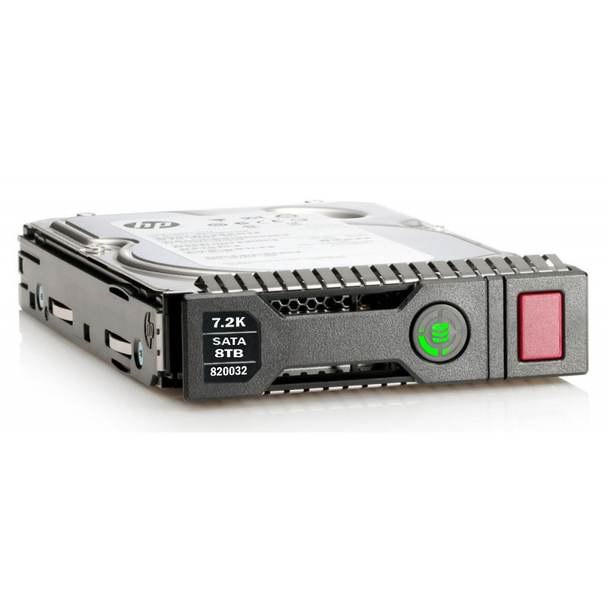

HPE 820032-001 8TB 7200RPM 3.5in DS SAS-12G SC Midline G9 G10 HDD

HPE 820032-001 8TB 7200RPM 3.5inch LFF 512e Digitally Signed Firmware SAS-12Gbps Smart Carrier Midline Hard Drive for ProLiant Gen9 Gen10 Servers (Refurbished - Grade A with 30 Days Warranty)

HPE Server Midline Hard Drives deliver the highest capacity, performance and reliability to your datacenter applications. Midline hard drives allow you to store more data without sacrificing performance or reliability; they are ideal to store all your bulk storage requirements. HPE Server Midline Hard Drives are available in both 3.5-inch Large Form Factor (LFF) and 2.5-inch Small Form Factor (SFF) and ship with a standard one-year warranty. All HPE hard drives pass a rigorous qualification process, which certify that every drive is proven to perform in your HPE ProLiant Server environments. Before final certification, all HPE Server Midline Hard Drives are optimized for compatibility and functionality, including support of SMART and HPE Systems Insight Manager.

Designed and Engineered to Provide High Capacity and Reliable Secure Storage
HPE Server Midline Hard Drives are ideal for the growing volume of digital content, bulk data storage, cloud and web infrastructure environments. Broad portfolio of optimized solutions provide up to 12 TB of storage, and growing in a single device. Rotational Vibration Sensors deliver enhanced rotational vibration tolerance that provides enterprise class reliability in midline drives. Available in 2.5-inch Small Form Factor (SFF) and 3.5-inch Large Form Factor (LFF) in a wide variety of capacity points. Prevent unauthorized access to your data with HPE Digitally Signed Firmware. It provides the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

Support Entry/SMB servers with value priced drives
HPE Server Midline Hard Drives have lower start-up costs without sacrificing reliability at the lowest $/GB. Non-mission critical hard drives at the lowest $/GB. 6 Gb/sec data transfer rate to support existing servers.

Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.

The HPE 820032-001 Midline Hard Drive has a 3.5 inch form factor and 12 Gbps external data transfer rate. It has a spindle speed of up to 7200 RPM and has 8 TB storage capacity. This Large Form Factor Digitally Signed Firmware hard drive uses a SAS-12Gbps interface and has 30 Days Warranty.

Specification

Brand: HPE
MPN: 820032-001

Option Part Number: 819201-B21
Spare Part Number: 820032-001
Model Number: MB8000JFECQ
Model Number: MB008000JWJRQ
Model Number: MB008000JWRTD
Assembly Number: 819199-001
Assembly Number: 877682-002
Assembly Number: P01106-001

General

Device Type: Hard Drive - Hot-Swap
Capacity: 8 TB
Form Factor: 3.5 inch LFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Format Type: 512e
Carrier Type: Smart Carrier (SC)
Plug Type: Hot Plug
Workload: Midline
Features: Advanced format 512e, Digitally Signed Firmware
Bundled with: HPE SmartDrive Carrier

Performance

Drive Transfer Rate: 1.2 GBps (external)
Spindle Speed: 7200 RPM
OD Media Rate, Max Sequential Throughput (MiB/s): 230 MiB/s
128Kib Random Rd (IOPs): 105 IOPs
128Kib Random 70% RD / 30% WT (IOPs): 115 IOPs
128Kib Random 50% RD / 50% WT (IOPs): 115 IOPs

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 3.5" LFF

Power

Power Idle Time (Watts): 4.70 Watt
Power Random R/W (Watts): 6.10 Watt
Power Sequential Read (Watts): 6.30 Watt
Power Sequential Write (Watts): 6.30 Watt

Dimensions

Width: 4.20 inch
Depth: 6.70 inch
Height: 1.10 inch

Environmental Parameters

Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F

Compatibility Information

Designed for

HPE ProLiant DL Series: DL180 Gen9 (3.5 inch), DL180 Gen9 Base (3.5 inch), DL180 Gen9 Entry (3.5 inch), DL180 Gen9 Storage (3.5 inch), DL20 Gen9 Solution (3.5 inch), DL360 Gen10 (3.5 inch), DL360 Gen10 Base (3.5 inch), DL360 Gen10 Entry (3.5 inch), DL360 Gen10 High Performance (3.5 inch), DL360 Gen10 Low (3.5 inch), DL360 Gen10 Performance (3.5 inch), DL360 Gen10 Solution (3.5 inch), DL380 Gen10 (3.5 inch), DL380 Gen10 Base (3.5 inch), DL380 Gen10 Entry (3.5 inch), DL380 Gen10 High Performance (3.5 inch), DL380 Gen10 Performance (3.5 inch), DL380 Gen10 Solution (3.5 inch), DL385 Gen10 (3.5 inch), DL385 Gen10 Base (3.5 inch), DL385 Gen10 Entry (3.5 inch), DL385 Gen10 High-Performance (3.5 inch), DL385 Gen10 Performance (3.5 inch), DL385 Gen10 Solution (3.5 inch), DL388 Gen9 (3.5 inch), DL388 Gen9 Base (3.5 inch), DL80 Gen9 Entry (3.5 inch)

HPE ProLiant ML Series: ML110 Gen9 (3.5 inch), ML110 Gen9 Base (3.5 inch), ML110 Gen9 Entry (3.5 inch), ML30 Gen9 Entry (3.5 inch), ML30 Gen9 Solution (3.5 inch)

HPE StoreEasy 1450

Please contact with us if you have any question or to know the compatibility of this with your current server or storage array.
