HPE 832414-X21 480GB 2.5in DS SATA-6G SC Mixed Use G9 G10 SSD

HPE 832414-X21 480GB 2.5inch SFF Digitally Signed Firmware (DS) eMLC SATA-6Gbps Smart Carrier (SC) Mixed Use (MU) Solid State Drive for ProLiant Gen8 Gen9 Gen10 Servers (New Bulk Pack With 90 Days Warranty)

HPE Server Mixed Use (MU) Solid State Drives (SSDs) deliver high performance and endurance for customers with applications requiring a balance of high random read and write IOPS performance. HPE (MU) SSDs typically have an endurance of between 1 and 10 drive writes per day (DWPD). All HPE SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high-performing drives. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that drive firmware comes from a trusted source. The self-describing icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a do not remove button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge compatibility in management tools, allowing you to determine if any drives are at risk of failure.

High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
Ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing. Achieve higher IOPS to enhance the performance of your data center. Maintain data accuracy with full data-path error detection.

Provides simplicity and lower total cost of ownership
HPE Solid State Drives deliver reduced power consumption, providing improved IOPS/W versus rotating media while reducing datacenter cooling costs. With compatibility in management tools, SmartSSD Wear Gauge prevents data loss and monitors SSD life.

Increases the efficiency of your server
HPE Solid State Drives (SSDs) allow you to get the most out of your server with more compute per watt with SSDs. Utilizes the unique Power Advisor tool for SSD and system power planning. Uses self-describing LED's that reduces drive activity confusion.

Accelerate workload performance with high performing HPE Solid State Drives
HPE Solid State Drives (SSDs) achieve higher Input/Output Per Second (IOPs) to enhance the performance of your data center. Experience the latest technology in the market and the industry-leading performance of 12 Gb SAS SSDs and NVMe PCIe SSDs. Gives you faster access to data with excellent latency. Provides you with the most complete portfolio of choices across SAS and SATA and first to market with latest technologies.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

The HPE 832414-X21 Mixed Use Solid State Drive has a 2.5 inch form factor and a 6 Gbps data transfer rate. It has a 480 GB capacity. This Small Form Factor Solid State Drive with Digitally Signed Firmware uses a SATA-6Gbps interface and has 90 Days Warranty.

Specifications

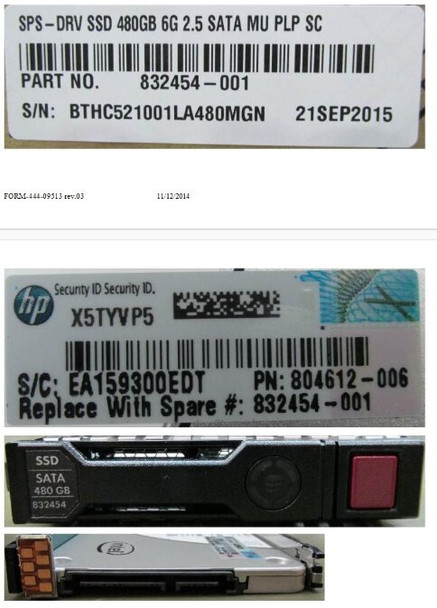

Brand: HPE
MPN: 832414-X21

Option Part Number: 832414-X21
Spare Part Number: 832454-001
Model Number: LK0480GFJSK
Assembly Number: 804612-006

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 480 GB
Form Factor: 2.5 inch SFF
Interface: SATA 6Gbps
Flash Type: eMLC
Bytes per Sector: 512
Carrier Type: Smart Carrier (SC)
Workload Type: Mixed Use
Plug Type: Hot Plug
Features: Digitally Signed Firmware
Bundled with: HPE Smart Carrier (SC)
Height: 15 mm

Performance

Endurance DWPD: 3
Drive Transfer Rate: 6 Gb/sec (external)
MAX Seq. Reads Throughput (MiB/s): 535
MAX Seq. Writes Throughput (MiB/s): 380
Random Read Average Latency uSec (4KiB,Q1): 110
Random Write Average Latency uSec (4KiB,Q1): 45
Random Read IOPS (4KiB, Q=16): 64500
Random Write IOPS (4KiB, Q=16): 26000
MAX Random Read IOPS (4KiB): 71000Q32
MAX Random Write IOPS (4KiB): 26000Q4
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 45000
4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 36000

Expansion & Connectivity

Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 1.18 Watts
Random Read: 2.60 Watts
Random Write: 2.60 Watts
Sequential Read: 3.06 Watts
Sequential Write: 5.12 Watts
Random R/W: 2.60 Watts

Environmental Parameters

Min Operating Temperature: 32 °F
Max Operating Temperature: 140 °F

Compatibility Information

Designed for

HPE ProLiant DL Series: DL120 Gen9 (2.5 inch), DL120 Gen9 Entry (2.5 inch), DL160 Gen9 (2.5 inch), DL160 Gen9 Base (2.5 inch), DL160 Gen9 Entry (2.5 inch), DL160 Gen9 Performance (2.5 inch), DL180 Gen9 (2.5 inch), DL180 Gen9 Base (2.5 inch), DL180 Gen9 Entry (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL320e Gen8 (2.5 inch), DL320e Gen8 Base (2.5 inch), DL320e Gen8 Entry (2.5 inch), DL320e Gen8 Performance (2.5 inch), DL320e Gen8 Special Server (2.5 inch), DL320e Gen8 v2 (2.5 inch), DL320e Gen8 v2 Base (2.5 inch), DL320e Gen8 v2 Entry (2.5 inch), DL320e Gen8 v2 Performance (2.5 inch), DL360 Gen9 (2.5 inch), DL360 Gen9 Base (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360 Gen9 Entry (2.5 inch), DL360 Gen9 Performance (2.5 inch), DL360 Gen9 Special Server (2.5 inch), DL360e Gen8 Special Server (2.5 inch), DL360p Gen8 (2.5 inch), DL360p Gen8 CMS (2.5 inch), DL360p Gen8 Performance (2.5 inch), DL360p Gen8 Special Server (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 High Performance (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380p Gen8 Performance (2.5 inch), DL385p Gen8 (2.5 inch), DL385p Gen8 Dedicated Workload (2.5 inch), DL385p Gen8 Entry (2.5 inch), DL385p Gen8 Storage (2.5 inch), DL385p Gen8 Storage Centric (2.5 inch), DL388 Gen9 (2.5 inch), DL388 Gen9 Base (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch), DL60 Gen9 (2.5 inch), DL60 Gen9 Base (2.5 inch), DL60 Gen9 Entry (2.5 inch), DL80 Gen9 (2.5 inch), DL80 Gen9 Base (2.5 inch), DL80 Gen9 Entry (2.5 inch)

HPE ProLiant ML Series: ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML150 Gen9 (2.5 inch), ML150 Gen9 Base (2.5 inch), ML150 Gen9 Entry (2.5 inch), ML150 Gen9 Performance (2.5 inch), ML310e Gen8 (2.5 inch), ML310e Gen8 Base (2.5 inch), ML310e Gen8 Entry (2.5 inch), ML310e Gen8 Performance (2.5 inch), ML310e Gen8 v2 (2.5 inch), ML310e Gen8 v2 Base (2.5 inch), ML310e Gen8 v2 Entry (2.5 inch), ML310e Gen8 v2 Performance (2.5 inch)

HPE ProLiant XL Series: XL230a Gen9 Compute Tray (2.5 inch), XL230a Gen9 Compute Tray (12G) (2.5 inch), XL230a Gen9 Compute Tray (6G) (2.5 inch), XL250a Gen9 Accelerator Tray (2.5 inch)

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
