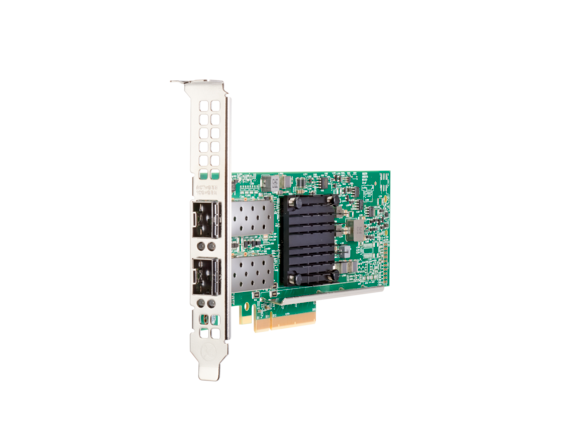

HPE 840130-001 10GbE/25GbE Dual Port 631SFP28 Network Adapter for G10

HPE 840130-001 10Gbps Ethernet or 25Gbps Ethernet Dual Port 631SFP28 Network Adapter for ProLiant Generation10 Servers (Brand New with 3 Years Warranty)

The HPE 840130-001 Ethernet 10Gb/25Gb Dual Port 631 Network Adapters deliver the capability to drive either 10G (SFP+) or 25G (SFP28) speeds, providing the option for a large jump in Ethernet performance. Compared to a 10G implementation these adapters offer cost reductions by lowering the number of servers, adapters, cables and switches while accelerating server performance and targeted workloads. These adapters help prevent, detect and recover from cyberattacks by protecting applications, data and server infrastructure by authenticating digitally signed firmware via a Root of Trust architecture. In addition, they offer Secure Boot, Device-level Firewall and other advanced security features. It comes with 3 Years Warranty.

Specifications

Brand: HPE
MPN: 840130-001

Option Part Number: 817718-B21
Spare Part Number: 840130-001

General

Device Type: Network adapter

Networking

Ports: 25 Gigabit SFP28 x 2
Data Link Protocol: 10 GigE, 25 Gigabit LAN
Data Transfer Rate: 25 Gbps
Features: Firewall protection, Function Level Reset (FLR), secure boot

Expansion & Connectivity

Expansion Slots: 2 (total) / 2 (free) x SFP28

Compatibility Information

Designed for

HPE ProLiant DL Series: DL360 Gen10, DL360 Gen10 Base, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Performance, DL360 Gen10 Solution, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 Performance

HPE ProLiant ML Series: ML350 Gen10, ML350 Gen10 Base, ML350 Gen10 Entry, ML350 Gen10 Performance, ML350 Gen10 Solution, ML350 Gen10 Sub-Entry

HPE ProLiant XL Series: XL170r Gen10, XL230k Gen10 Compute Tray

Product Features

Safeguard Your Data and Your Business Network
The HPE Ethernet 10Gb/25Gb Dual Port 631 Network Adapter blocks installation of rogue or corrupted firmware and verifies that the executing firmware is trusted via Hardware Root of Trust and Authentication. Stops unmanaged access to memory or storage with Device - level Firewall. This validates that on-device firmware and configuration data can only be accessed by authorized agents. Provides traceability into authenticated firmware updates by capturing changes in standard system logs.

Boosting I/O Bandwidth with Lower Latency
The HPE Ethernet 10Gb/25Gb Dual Port 631 Network Adapter delivers single root I/O virtualization (SR-IOV) with the ability to run a large number of virtual machines (VMs) per server, which reduces the need for hardware and the resultant costs of space and power required by hardware devices. Reduces CPU Utilization and helps improve host VM density and server efficiency using remote direct memory access (RDMA) over Converged Ethernet (RoCE v2) for Live Migration, Microsoft SMB Direct environments.

Realize Breakthrough Economics
The HPE Ethernet 10Gb/25Gb Dual Port 631 Network Adapter offloads packet processing to reduce CPU utilization and lower power with Tunnel Offloads (VXLAN and NVGRE). Speeds packet processing to service more I/O requests utilizing data plane development packet (DPDK).

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
