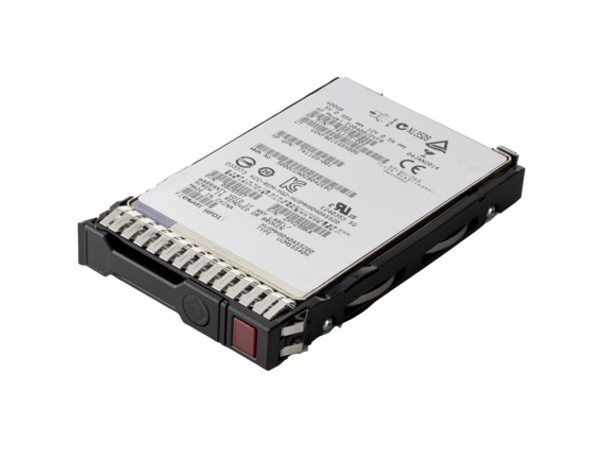

HPE 846432-B21 1.6TB 2.5in SAS-12G SC Write Intensive G8 G9 G10 SSD

HPE 846432-B21 1.6TB 2.5inch Small Form Factor Power Loss Protection (PLP) SAS-12Gbps Smart Carrier Write Intensive Solid State Drive for ProLiant Gen8 Gen9 Gen10 Servers (Brand New 3 Years Warranty)

HPE Solid State Drives (SSDs) deliver exceptional performance and endurance while reducing power consumption for customers with applications requiring high random read and write IOPs performance. These drives deliver higher performance, better latency, and more power-efficient solutions when compared with traditional rotating media.

HPE Server Write Intensive (WI) Solid State Drives (SSDs) deliver high performance and endurance for customers with applications requiring a balance of write IOPS performance. HPE (WI) SSDs typically have an endurance of >=10 drive writes per day (DWPD). All HPE SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high-performing drives. The self-describing icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a “do not remove” button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge compatibility in management tools, allowing you to determine if any drives are at risk of failure.

HPE SSDs offer High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
Ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.
Achieve higher IOPS to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in capacities up to 15.3 TB and growing.
12 Gb/s SAS, 6 Gb/s SATA, and NVMe.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.

The HPE 846432-B21 Write Intensive Solid State Drive has a 2.5 inch form factor and a 12 Gbps data transfer rate. It has a 1.6 TB capacity. This Small Form Factor Solid State Drive uses a SAS-12Gbps interface, supports Power Loss Protection (PLP) and comes with 3 Years Warranty.

Specifications

Brand: HPE
MPN: 846432-B21

Option Part Number: 846432-B21
Spare Part Number: 846623-001
Model Number: EO1600JVYPP
Assembly Number: 844022-002

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 1.6 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
NAND Flash Memory Type: Multi-Level Cell (MLC)
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
Workload Type: Write Intensive
Features: Supports Power Loss Protection (PLP)
Bundled with: HPE Smart Carrier (SC)
Server Gen Supported: ProLiant Gen8/Gen9/Gen10 Servers
Height: 15 mm (0.6 inch)

Performance

Endurance DWPD: 10
Drive Transfer Rate: 12 Gb/sec (external)
MAX Seq. Reads Throughput (MiB/s): 1080
MAX Seq. Writes Throughput (MiB/s): 520
Random Read Average Latency uSec (4KiB,Q1): 120
Random Write Average Latency uSec (4KiB,Q1): 50
Random Read IOPS (4KiB, Q=16): 100000
Random Write IOPS (4KiB, Q=16): 66000
MAX Random Write IOPS (4KiB): 120000Q32
MAX Random Write IOPS (4KiB): 68000Q32
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 98000
4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 63000

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 5.21 Watts
Random Read: 6.20 Watts
Random Write: 6.20 Watts
Sequential Read: 9.53 Watts
Sequential Write: 10.65 Watts
Random Read/Write: 6.20 Watts

Environmental Parameters

Min Operating Temperature: 32 °F
Max Operating Temperature: 140 °F

Compatibility Information

Designed for

HPE ProLiant BL Series: BL420c (Gen8 Gen9) BL460c (Gen8 Gen9) BL465c (Gen8 Gen9) BL660c (Gen8 Gen9)

HPE ProLiant DL Series: DL20 (Gen9) DL120 (Gen8 Gen9) DL160 (Gen8 Gen9) DL180 (Gen8 Gen9) DL320e (Gen8 Gen9) DL360 (Gen8 Gen9) DL360e (Gen8 Gen9) DL360p (Gen8 Gen9) DL388 (Gen9) DL380 (Gen8 Gen9) DL380e (Gen8 Gen9) DL380p (Gen8 Gen9) DL385 (Gen10) DL385p (Gen8 Gen9) DL560 (Gen8 Gen9) DL580 (Gen8 Gen9) DL160 (Gen10) DL360 (Gen10) DL380 (Gen10) DL385 (Gen10) DL560 (Gen10) DL580 (Gen10)

HPE ProLiant ML Series: ML110 (Gen8 Gen9) ML150 (Gen8 Gen9) ML310e (Gen8 Gen9) ML350 (Gen8 Gen9) ML350e (Gen8 Gen9) ML350p (Gen8 Gen9) ML110 (Gen10) ML350 (Gen10)

HPE ProLiant SL Series: SL230s (Gen8 Gen9) SL250s (Gen8 Gen9) SL270s (Gen8 Gen9)

HPE ProLiant XL Series: XL170r (Gen9) XL190r (Gen9) XL220a (Gen9) XL230a (Gen9) XL250a (Gen9) XL230k (Gen10)

HPE Storage Arrays: D3700 D2220sb StoreEasy 1830 1840

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
