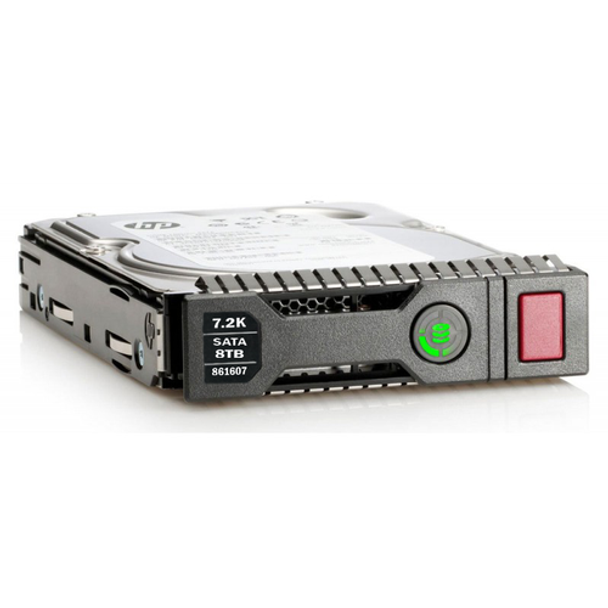

HPE 861607-001 8TB 3.5in 7200RPM DS SAS 12G SC Midline G9 G10 HDD

HPE 861607-001 8TB 3.5inch Large Form Factor 7200RPM Digitally Signed Firmware SAS-12Gbps Smart Carrier Midline Hard Drive for ProLiant Gen8 Gen9 Gen10 Servers (Refurbished - Grade A with 30 Days Warranty)

HPE Server Midline Hard Drives deliver the highest capacity, performance and reliability to your datacenter applications. Midline hard drives allow you to store more data without sacrificing performance or reliability; they are ideal to store all your bulk storage requirements. HPE Server Midline Hard Drives are available in both 3.5-inch Large Form Factor (LFF) and 2.5-inch Small Form Factor (SFF) and ship with a standard one-year warranty. All HPE hard drives pass a rigorous qualification process, which certify that every drive is proven to perform in your HPE ProLiant Server environments. Before final certification, all HPE Server Midline Hard Drives are optimized for compatibility and functionality, including support of SMART and HPE Systems Insight Manager.

HPE Supports Your Data-Driven Applications With a Broad Portfolio of HDDs
HPE Server Midline Hard Drives are ideal for the growing volume of digital content, bulk data storage, cloud and web infrastructure environments
Broad portfolio of HDDs, optimized for HPE server platforms, provide up to 14 TB of storage
Available in 2.5-inch Small Form Factor and 3.5-inch Large Form Factor in a wide variety of capacity points
Simplify HDD planning and standardize HDDs across HPE server and storage solutions
Common HDD carriers offer consistency and compatibility across HPE server platforms

Engineered to Deliver High Performance and Reliability Across HPE server and Storage Platforms
HPE HDDs are tuned and tested with on-going quality monitoring throughout their lifecycle
HPE optimizes HDD firmware for predictable and consistent HDD performance
HPE's industry-leading rigorous testing and qualification program is backed by 3.35 million test hours
Pre-failure Alerts with HPE Smart Array Controller, Systems Insight Manager, and HPE Smart firmware
3x faster firmware and software updates with HPE Service Pack for ProLiant (HPE SPP)

HPE HDDs are Designed to Deliver Enterprise Class Security at Both Hardware and Firmware Levels
HPE Digitally Signed Firmware helps prevent against malicious attacks
HPE Smart Array SR Secure Encryption is a FIPS 140-2 Level 1 validated enterprise class controller-based encryption solution for data-at-rest on all SAS/SATA drives
HPE Smart Carriers report drive activity and health

Support Entry/SMB servers with value priced drives
HPE Server Midline Hard Drives have lower start-up costs without sacrificing reliability at the lowest $/GB.
Non-mission critical hard drives at the lowest $/GB.
6 Gb/sec data transfer rate to support existing servers.

Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

The HPE 861607-001 Midline Hard Drive has a 3.5 inch form factor and a 12 Gbps data transfer rate. It has a 8 TB capacity and a spindle speed of 7200 RPM. This Large Form Factor Hard Drive uses a SAS-12Gbps interface and has 30 Days Warranty.

Specification

Brand: HPE
MPN: 861607-001

Option Part Number: 861590-B21
Spare Part Number: 861607-001
Model Number: MB008000JWAYH
Assembly Number: 857642-001
HPE GPN: 857652-006

General

Device Type: Hard Drive - Hot-Swap
Capacity: 8 TB
Form Factor: 3.5 inch LFF
Interface: SAS 12 Gbps
Bytes per Sector: 512
Plug Type: Hot Plug
Carrier Type: Smart Carrier
Workload Type: Midline
Features: Advanced format 512e, Digitally Signed Firmware
Bundled With: HPE SmartDrive carrier

Performance

Drive Transfer Rate: 12 Gb/sec (external)
Seek Time: 8 ms (average) / 16 ms (max)
Track-to-Track Seek Time: 0.22 ms
Spindle Speed: 7200 RPM

Expansion & Connectivity

Interfaces: 1 x SAS 12Gb/s
Compatible Bay: 3.5" LFF

Miscellaneous

Compliant Standards: WEEE

Product Dimensions

Width: 4.20 inch
Depth: 6.70 inch
Height: 1.10 inch

Environmental Parameters

Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F

Compatibility Information

Designed For

HPE ProLiant DL Series: DL120 Gen9 (3.5inch), DL120 Gen9 Entry (3.5inch), DL180 Gen9 (3.5inch), DL180 Gen9 Base (3.5inch), DL180 Gen9 Entry (3.5inch), DL180 Gen9 Storage (3.5inch), DL20 Gen9 (3.5inch), DL20 Gen9 Entry (3.5inch), DL20 Gen9 Performance (3.5inch), DL20 Gen9 Solution (3.5inch), DL360 Gen10 (3.5inch), DL360 Gen10 Base (3.5inch), DL360 Gen10 Entry (3.5inch), DL360 Gen10 High Performance (3.5inch), DL360 Gen10 Low (3.5inch), DL360 Gen10 Performance (3.5inch), DL360 Gen10 Solution (3.5inch), DL380 Gen10 (3.5inch), DL380 Gen10 Base (3.5inch), DL380 Gen10 Entry (3.5inch), DL380 Gen10 High Performance (3.5inch), DL380 Gen10 Performance (3.5inch), DL380 Gen10 Solution (3.5inch), DL385 Gen10 (3.5inch), DL385 Gen10 Base (3.5inch), DL385 Gen10 Entry (3.5inch), DL385 Gen10 High-Performance (3.5inch), DL385 Gen10 Performance (3.5inch), DL385 Gen10 Solution (3.5inch), DL388 Gen9 (3.5inch), DL388 Gen9 Base (3.5inch), DL60 Gen9 (3.5inch), DL60 Gen9 Base (3.5inch), DL60 Gen9 Entry (3.5inch), DL80 Gen9 (3.5inch), DL80 Gen9 Base (3.5inch), DL80 Gen9 Entry (3.5inch)

HPE ProLiant ML Series: ML110 Gen9 (3.5inch), ML110 Gen9 Base (3.5inch), ML110 Gen9 Entry (3.5inch), ML150 Gen9 (3.5inch), ML150 Gen9 Base (3.5inch), ML150 Gen9 Entry (3.5inch), ML150 Gen9 Performance (3.5inch), ML30 Gen9 Entry (3.5inch), ML30 Gen9 Solution (3.5inch)

HPE StoreEasy 1450

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
