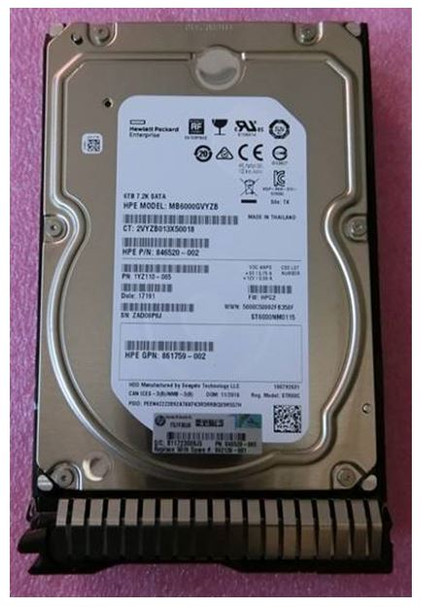

HPE 861750-X21 6TB 7200RPM 3.5in DS SATA-6G SC Midline G9 G10 HDD

HPE 861750-X21 6TB 3.5inch LFF 7200RPM 512e Digitally Signed Firmware SATA-6Gbps Smart Carrier Hot-Swap Midline Hard Drive for ProLiant Gen9 Gen10 Servers (Refurbished - Grade A with 30 Days Warranty)

HPE Server Midline Hard Drives deliver the highest capacity, performance and reliability to your datacenter applications. Midline hard drives allow you to store more data without sacrificing performance or reliability; they are ideal to store all your bulk storage requirements. HPE Server Midline Hard Drives are available in both 3.5-inch Large Form Factor (LFF) and 2.5-inch Small Form Factor (SFF) and ship with a standard one-year warranty. All HPE hard drives pass a rigorous qualification process, which certify that every drive is proven to perform in your HPE ProLiant Server environments. Before final certification, all HPE Server Midline Hard Drives are optimized for compatibility and functionality, including support of SMART and HPE Systems Insight Manager.

Designed and Engineered to Provide High Capacity and Reliable Secure Storage
HPE Server Midline Hard Drives are ideal for the growing volume of digital content, bulk data storage, cloud and web infrastructure environments.
Broad portfolio of optimized solutions provide up to 12 TB of storage, and growing in a single device.
Rotational Vibration Sensors deliver enhanced rotational vibration tolerance that provides enterprise class reliability in midline drives.
Available in 2.5-inch Small Form Factor (SFF) and 3.5-inch Large Form Factor (LFF) in a wide variety of capacity points.
Prevent unauthorized access to your data with HPE Digitally Signed Firmware. It provides the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Support Entry/SMB servers with value priced drives
HPE Server Midline Hard Drives have lower start-up costs without sacrificing reliability at the lowest $/GB.
Non-mission critical hard drives at the lowest $/GB.
6 Gb/sec data transfer rate to support existing servers.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Smart carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

The HPE 861750-X21 Digitally Signed Firmware Midline Hard Drive has a 3.5 inch form factor and a 600 MBps external data transfer rate. It has a spindle speed up to 7200 RPM and a 6 TB capacity. This Large Form Factor Dual Port Hard Drive uses a SATA-6Gbps interface and has 30 Days Warranty.

Specifications

Brand: HPE
MPN: 861750-X21

Option Part Number: 861750-X21
Spare Part Number: 862138-001
Model Number: MB6000GVYZB
Model Number: MB006000GWBXQ
Model Number: MB006000GWFVR
Model Number: MB006000GWJRR
Model Number: MB006000GWKGR
Assembly Number: 846520-002
Assembly Number: 865410-001
Assembly Number: 872292-002
Assembly Number: 877683-001
Assembly Number: 879479-002
HPE GPN: 861759-002

General

Device Type: Hard Drive - Hot-Swap
Capacity: 6 TB
Form Factor: 3.5 inch LFF
Interface: SATA 6 Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Format Type: 512e
Carrier Type: Smart Carrier (SC)
Workload: Midline
Features: Advanced Format 512e, Digitally Signed Firmware
Bundled with: HPE SmartDrive Carrier

Performance

Transfer Rate Synchronous (Max): 6Gb/sec
Rotational Speed: 7200 RPM
Average Seek Time: 7.45 ms
Max Seek Time: 14.2 ms
Track-to-Track Seek Time: 0.32 ms
OD Media Rate, Max Sequential Throughput (MiB/s): 215
128Kib Random Rd (IOPs): 105
128Kib Random 70% RD/ 30% WT (IOPs): 105
128Kib Random 50% RD/ 50% WT(IOPs): 110

Expansion & Connectivity

Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 3.5" LFF

Power Consumption

Idle Time: 8.80 Watts
Random R/W: 12.10 Watts
Power Sequential Read: 10.80 Watts
Power Sequential Write: 10.50 Watts

Environmental Parameters

Min Operating Temperature: 50° F (10° C)
Operating Temperature: 95° F (35° C)

Product Dimensions

Height: 1.06 inch (26.80 mm)
Width: 4.16 inch (105.80 mm)
Depth: 6.69 inch (170.00 mm)

Compatibility Information

Designed for

HPE ProLiant DL Series: DL120 Gen9 (3.5 inch), DL120 Gen9 Entry (3.5 inch), DL160 Gen9 (3.5 inch), DL160 Gen9 Base (3.5 inch), DL160 Gen9 Entry (3.5 inch), DL160 Gen9 Performance (3.5 inch), DL20 Gen9 Solution (3.5 inch), DL360 Gen10 (3.5 inch), DL360 Gen10 Base (3.5 inch), DL360 Gen10 Entry (3.5 inch), DL360 Gen10 High Performance (3.5 inch), DL360 Gen10 Low (3.5 inch), DL360 Gen10 Performance (3.5 inch), DL360 Gen10 Solution (3.5 inch), DL380 Gen10 (3.5 inch), DL380 Gen10 Base (3.5 inch), DL380 Gen10 Entry (3.5 inch), DL380 Gen10 High Performance (3.5 inch), DL380 Gen10 Performance (3.5 inch), DL380 Gen10 Solution (3.5 inch), DL385 Gen10 (3.5 inch), DL385 Gen10 Base (3.5 inch), DL385 Gen10 Entry (3.5 inch), DL385 Gen10 High-Performance (3.5 inch), DL385 Gen10 Performance (3.5 inch), DL385 Gen10 Solution (3.5 inch), DL388 Gen9 (3.5 inch), DL388 Gen9 Base (3.5 inch), DL60 Gen9 (3.5 inch), DL60 Gen9 Base (3.5 inch), DL60 Gen9 Entry (3.5 inch), DL80 Gen9 (3.5 inch), DL80 Gen9 Base (3.5 inch), DL80 Gen9 Entry (3.5 inch)

HPE ProLiant ML Series: ML110 Gen9 (3.5 inch), ML110 Gen9 Base (3.5 inch), ML110 Gen9 Entry (3.5 inch), ML150 Gen9 (3.5 inch), ML150 Gen9 Base (3.5 inch), ML150 Gen9 Entry (3.5 inch), ML150 Gen9 Performance (3.5 inch), ML30 Gen9 Entry (3.5 inch), ML30 Gen9 Solution (3.5 inch)

Microsoft Azure Stack

HPE StoreEasy 1450

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
