HPE 867213-004-SC 960GB 2.5in DS SATA-6G Read Intensive G9 G10 SSD

HPE 867213-004-SC 960GB 2.5inch SFF Digitally Signed Firmware SATA-6Gbps Smart Carrier Read Intensive Solid State Drive for ProLiant Gen9 Gen10 Servers (New Bulk Pack With 90 Days Warranty)

HPE Server Read Intensive (RI) Solid State Drives (SSDs) deliver high performance and endurance for applications requiring high random read IOPS performance. HPE (RI) SSDs typically have an endurance of <1 drive writes per day. All HPE SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high performing drives. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that drive firmware comes from a trusted source. The self-describing icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a "do not remove" button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge compatibility in management tools, allowing you to determine if any drives are at risk of failure.

HPE SSDs offer High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
Ideal for big data analytics, cloud computing, active archiving, database applications and data warehousing.
Achieve higher IOPs to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.
12 Gb/s SAS, 6 Gb/s SATA, NVMe, M.2, and M.2 Enablement Kits.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

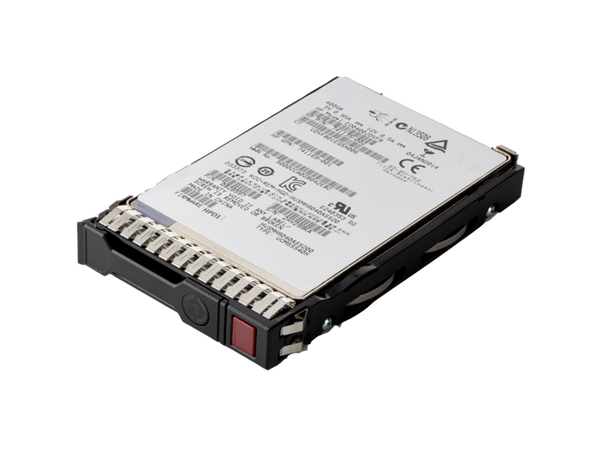

The HPE 867213-004-SC Read Intensive Solid State Drive has a 2.5 inch form factor and a 6 Gbps external data transfer rate. It has a 960 GB capacity. This Small Form Factor Solid State Drive with Digitally Signed Firmware uses a SATA-6Gbps interface and has 90 Days Warranty.

Specification

Brand: HPE
MPN: 867213-004-SC

Option Part Number: 869384-B21
Spare Part Number: 869580-001
Model Number: VK000960GWCNR
Assembly Number: 867213-004

General

Capacity: 960 GB
Interface Type: SATA 6 Gbps
Form Factor: 2.5 inch SFF
Flash Type: MLC
Plug Type: Hot Plug
Workload Type: Read Intensive
Carrier Type: Smart Carrier (SC)
Features: Digitally Signed Firmware
Bundled With: HPE SmartDrive Carrier
Height: 15 mm

Performance

Endurance DWPD: 0.6
Drive Transfer Rate: 6Gb/sec (external)
MAX Seq. Reads Throughput (MiB/s): 420
MAX Seq. Writes Throughput (MiB/s): 315
Random Read Average Latency uSec (4KiB,Q1): 155
Random Write Average Latency uSec (4KiB,Q1): 80
Random Read IOPS (4KiB, Q=16): 55000
Random Write IOPS (4KiB, Q=16): 14000
MAX Random Read IOPS (4KiB): 59000@Q32
MAX Random Write IOPS (4KiB): 14000@Q4
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 30000
4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 22000

Expansion & Connectivity

Interfaces: 1 x SATA-6Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 0.75 Watt
Random Read: 2.42 Watt
Random Write: 2.42 Watt
Sequential Read: 3.10 Watt
Sequential Write: 3.58 Watt
Random R/W: 2.42 Watt

Compatibility Information

Designed For

HPE ProLiant BL Series: BL460c Gen10 (2.5 inch)

HPE ProLiant DL Series: DL160 Gen9 (2.5 inch), DL160 Gen9 Base (2.5 inch), DL160 Gen9 Entry (2.5 inch), DL160 Gen9 Performance (2.5 inch), DL20 Gen9 (2.5 inch), DL20 Gen9 Base (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL20 Gen9 Special Server (2.5 inch), DL360 Gen10 (2.5 inch), DL360 Gen10 Base (2.5 inch), DL360 Gen10 Entry (2.5 inch), DL360 Gen10 High Performance (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Performance (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL360 Gen9 (2.5 inch), DL360 Gen9 Base (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360 Gen9 Entry (2.5 inch), DL360 Gen9 Performance (2.5 inch), DL360 Gen9 Special Server (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 High Performance (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380 Gen9 Special (2.5 inch), DL388 Gen9 (2.5 inch), DL388 Gen9 Base (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Base (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 High Performance (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch)

HPE ProLiant ML Series: ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch)

HPE Synergy 480 Gen10 Base Compute Module (2.5 inch), 480 Gen10 Entry Compute Module (2.5 inch), 480 Gen10 Performance Compute Module (2.5 inch), 480 Gen10 Premium Backplane Compute Module (2.5 inch), 480 Gen10 Standard BackPlane Compute Module (2.5 inch), 480 Gen10 w/o Drives Compute Module (2.5 inch), 660 Gen10 Base Compute Module (2.5 inch), 660 Gen10 Compute Module (2.5 inch), 660 Gen10 Entry Compute Module (2.5 inch), 660 Gen10 Performance Compute Module (2.5 inch), 660 Gen10 Premium Compute Module (2.5 inch)

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
