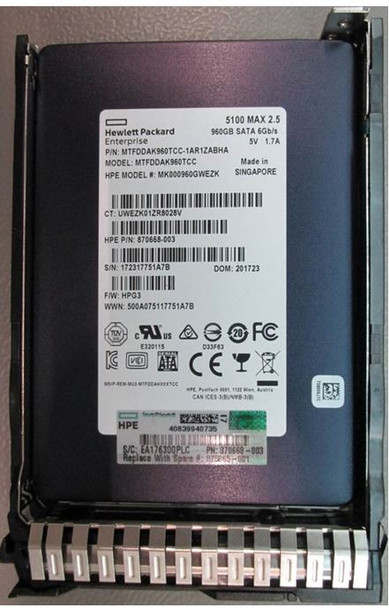

HPE 870668-003-SC 960GB 2.5in DS SATA-6G Mixed Use G9 G10 SSD

HPE 870668-003-SC 960GB 2.5inch SFF Digitally Signed Firmware TLC SATA-6Gbps Smart Carrier Mixed Use Solid State Drive for ProLiant Generation9 Generation10 Servers (New Sealed Spare with 1 Year Warranty)

HPE Server Mixed Use (MU) Solid State Drives (SSDs) deliver high performance and endurance for customers with applications requiring a balance of high random read and write IOPS performance. HPE (MU) SSDs typically have an endurance of between <1 and <10 drive writes per day (DWPD). All HPE SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high-performing drives. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that drive firmware comes from a trusted source. The self-describing icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a “do not remove” button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge compatibility in management tools, allowing you to determine if any drives are at risk of failure.

HPE SSDs offer High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
Ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.
Achieve higher IOPS to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in capacities up to 15.3 TB and growing.
12 Gb/s SAS, 6 Gb/s SATA, and NVMe.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

The HPE 870668-003-SC Mixed Use Solid State Drive has a 2.5 inch form factor and a 6 Gbps data transfer rate. It has a 960 GB capacity. This Small Form Factor Digitally Signed Firmware Solid State Drive uses a SATA-6Gbps interface and has 1 Year Warranty.

Specifications

Brand: HPE
MPN: 870668-003-SC

Option Part Number: 875474-B21
Spare Part Number: 875865-001
Model Number: MK000960GWEZK
Assembly Number: 870668-003

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 960 GB
Form Factor: 2.5 inch SFF
Interface: SATA 6Gbps
Flash Type: TLC
Plug Type: Hot Plug
Workload Type: Mixed Use (MU)
Carrier Type: Smart Carrier (SC)
Features: Digitally Signed Firmware (DS)
Bundled with: HPE SmartDrive Carrier
Height: 7 mm

Performance

Drive Transfer Rate: 6 Gb/sec (external)
30 Days Writes (TB): 8800
Endurance DWPD: 5.0
MAX Seq Reads Throughput (MiB/s): 510
Max Seq Writes Throughput (MiB/s): 480
Random Read Avg. Latency uSec (4KiB, Q1): 130
Random Write Avg. Latency uSec (4KiB, Q1): 40
Random Read IOPS (4KiB, Q=16): 60000
Random Writes IOPS (4KiB, Q=16): 52500
MAX Random Read IOPS (4KiB): 67500@Q32
MAX Random Write IOPS (4KiB): 52500@Q16

Expansion & Connectivity

Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 3.22 Watt
Random Read: 5.31 Watt
Random Write: 11.56 Watt
Sequential Read: 5.22 Watt
Sequential Write: 11.04 Watt
Random R/W: 6.53 Watt
Power MAX: 12.00 Watt

Compatibility Information

Designed for

HPE ProLiant BL Series: BL460c Gen9 (2.5 inch), BL460c Gen9 Base (2.5 inch), BL460c Gen9 Entry (2.5 inch), BL460c Gen9 Performance (2.5 inch), BL660c Gen9 (2.5 inch) Servers

HPE ProLiant DL Series: DL120 Gen9 (2.5 inch), DL120 Gen9 Entry (2.5 inch), DL180 Gen9 (2.5 inch), DL180 Gen9 Base (2.5 inch), DL180 Gen9 Entry (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL20 Gen9 (2.5 inch), DL20 Gen9 Base (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL20 Gen9 Solution (2.5 inch), DL20 Gen9 Special Server (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 High Performance (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (2.5 inch), DL380 Gen9 Special (2.5 inch), DL385 Gen10 (2.5 inch), DL385 Gen10 Base (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 High-Performance (2.5 inch), DL385 Gen10 Performance (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL388 Gen9 (2.5 inch), DL388 Gen9 Base (2.5 inch), DL580 Gen10 (2.5 inch), DL580 Gen10 Base (2.5 inch), DL580 Gen10 Entry (2.5 inch), DL580 Gen10 Performance (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Base (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 High Performance (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch) Servers

HPE ProLiant ML Series: ML110 Gen10 (2.5 inch), ML110 Gen10 Entry (2.5 inch), ML110 Gen10 Performance (2.5 inch), ML110 Gen10 Solution (2.5 inch), ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML150 Gen9 (2.5 inch), ML150 Gen9 Base (2.5 inch), ML150 Gen9 Entry (2.5 inch), ML150 Gen9 Performance (2.5 inch), ML30 Gen9 (2.5 inch), ML30 Gen9 Base (2.5 inch), ML30 Gen9 Entry (2.5 inch), ML30 Gen9 Performance (2.5 inch), ML30 Gen9 Solution (2.5 inch), ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch), ML350 Gen9 (2.5 inch), ML350 Gen9 Base (2.5 inch), ML350 Gen9 Entry (2.5 inch), ML350 Gen9 Performance (2.5 inch) Servers

HPE ProLiant WS Series: WS460c Gen9 (2.5 inch), WS460c Gen9 Graphics (2.5 inch), WS460c Gen9 Graphics Expansion (2.5 inch) Servers

HPE ProLiant XL Series: XL170r Gen10 (2.5 inch) Server

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
