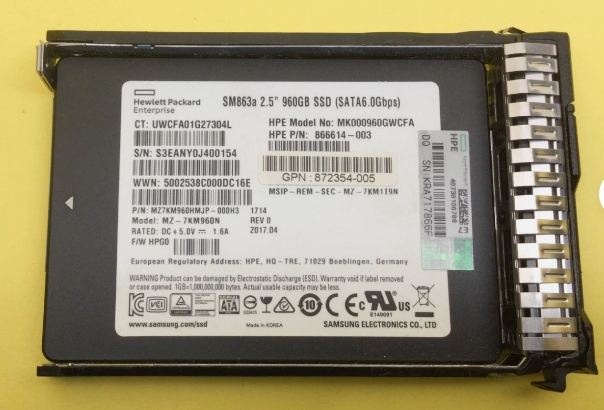

HPE 872348-K21 960GB 2.5in DS SATA-6G SC Mixed Use G9 G10 SSD

HPE 872348-K21 960GB 2.5inch Small Form Factor Digitally Signed Firmware MLC SATA-6Gbps Smart Carrier Mixed Use Solid State Drive for ProLiant Gen9 Gen10 Servers (New Sealed Spare with 1 Year Warranty)

HPE Servers Mixed Use (MU) Solid State Drives (SSDs) deliver high performance and endurance for customers with applications requiring a balance of high random read and write IOPS performance. HPE (MU) SSDs typically have an endurance of between <1 and <10 drive writes per day (DWPD). All HPE SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high-performing drives. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that drive firmware comes from a trusted source. The self-describing icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a “do not remove” button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge compatibility in management tools, allowing you to determine if any drives are at risk of failure.

HPE SSDs offer High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
Ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.
Achieve higher IOPS to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.
12 Gb/s SAS, 6 Gb/s SATA, and NVMe.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

The HPE 872348-K21 Mixed Use Solid State Drive has a 2.5 inch form factor and a 6 Gbps data transfer rate. It has a 960 GB capacity. This Small Form Factor Digitally Signed Firmware Solid State Drive uses a SATA-6Gbps interface and has 1 Year Warranty.

Specifications

Brand: HPE
MPN: 872348-K21

Option Part Number: 872348-K21
Spare Part Number: 872520-001
Model Number: MK000960GWCFA
Assembly Number: 866614-003

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 960 GB
Form Factor: 2.5 inch SFF
Interface: SATA 6Gbps
Flash Type: Multi-Level Cell (MLC)
Plug Type: Hot Plug
Workload Type: Mixed Use (MU)
Carrier Type: Smart Carrier (SC)
Features: Digitally Signed Firmware (DS)
Bundled with: HPE SmartDrive Carrier
Height: 7 mm

Performance

Drive Transfer Rate: 6 Gb/sec (external)
30 Days Writes (TB): 6727
Endurance DWPD: 3.5
MAX Seq Reads Throughput (MiB/s): 510
Max Seq Writes Throughput (MiB/s): 475
Random Read Avg. Latency uSec (4KiB,Q1): 110
Random Write Avg. Latency uSec (4KiB,Q1): 40
Random Read IOPS (4KiB,Q=16): 62000
Random Writes IOPS (4KiB,Q=16): 26500
MAX Random Read IOPS (4KiB): 69000@Q32
MAX Random Write IOPS (4KiB): 26500@Q4

Expansion & Connectivity

Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 1.23 Watts
Random Read: 2.66 Watts
Random Write: 2.66 Watts
Sequential Read: 2.69 Watts
Sequential Write: 2.84 Watts
Random R/W: 2.66 Watts
MAX: 3.00 Watts

Compatibility Information

Designed for

HPE ProLiant BL Series: BL460c Gen10 (2.5 inch), BL660c Gen9 (2.5 inch)

HPE ProLiant DL Series: DL120 Gen9 Entry (2.5 inch), DL160 Gen9 Performance (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL20 Gen9 (2.5 inch), DL20 Gen9 Base (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL20 Gen9 Solution (2.5 inch), DL20 Gen9 Special Server (2.5 inch), DL360 Gen10 (2.5 inch), DL360 Gen10 Base (2.5 inch), DL360 Gen10 Entry (2.5 inch), DL360 Gen10 High Performance (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Performance (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL360 Gen9 (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360 Gen9 Performance (2.5 inch), DL360 Gen9 Special Server (2.5 inch), DL380 Gen9 High Performance (2.5 inch), DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (2.5 inch), DL380 Gen9 Special (2.5 inch), DL388 Gen9 (2.5 inch), DL388 Gen9 Base (2.5 inch), DL560 Gen10 (2.5 inch), DL560 Gen10 Base (2.5 inch), DL560 Gen10 Entry (2.5 inch), DL560 Gen10 Performance (2.5 inch), DL560 Gen9 (2.5 inch), DL560 Gen9 Base (2.5 inch), DL560 Gen9 Entry (2.5 inch), DL560 Gen9 Performance (2.5 inch), DL580 Gen10 (2.5 inch), DL580 Gen10 Base (2.5 inch), DL580 Gen10 Entry (2.5 inch), DL580 Gen10 Performance (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Base (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 High Performance (2.5 inch), DL580 Gen9 SAP HANA Scale-out Base Configuration (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch)

HPE ProLiant ML Series: ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML150 Gen9 Base (2.5 inch), ML150 Gen9 Performance (2.5 inch), ML30 Gen9 (2.5 inch), ML30 Gen9 Base (2.5 inch), ML30 Gen9 Performance (2.5 inch), ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch)

HPE ProLiant XL Series: XL170r Gen10 (2.5 inch), XL270d Gen9 (2.5 inch)

HPE StoreEasy 1850

HPE Synergy 660 Gen10 Base Compute Module (2.5 inch), 660 Gen10 Compute Module (2.5 inch), 660 Gen10 Entry Compute Module (2.5 inch), 660 Gen10 Performance Compute Module (2.5 inch), 660 Gen10 Premium Compute Module (2.5 inch)

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
