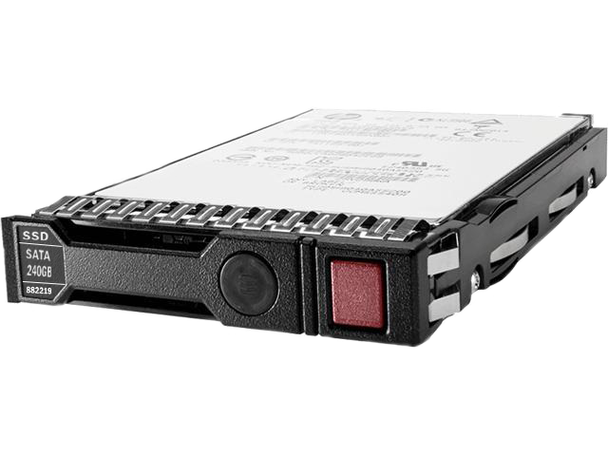

HPE 880295-B21 240GB 2.5in DS SATA-6G SC Mixed Use G9 G10 SSD

HPE 880295-B21 240GB 2.5inch Small Form Factor Digitally Signed Firmware SATA-6Gbps Smart Carrier Mixed Use Solid State Drive for ProLiant Gen9 Gen10 Server (Refurbished - Grade A with 30 Days Warranty)

HPE Servers Mixed Use (MU) Solid State Drives (SSDs) deliver high performance and endurance for applications requiring high random read and write IOPS performance. HPE (MU) SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high-performing drives.
HPE Value SAS SSDs offer a significant performance boost over SATA SSDs with roughly twice the IOPS of SATA SSDs, enabling you to improve transactional database workloads with affordable Value SAS SSDs. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that firmware comes from a trusted source. Icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a "do not remove" button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge, allowing you to determine if any drives are at risk of failure.

High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
HPE solid-state drives are ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.
Achieve higher IOPS to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.
12 Gb/s SAS, 6 Gb/s SATA, and NVMe.

Value SAS SSDs Offer Twice the IOPS of SATA SSDs, Significantly Improving Workload Performance
HPE Value SAS solid-state drives (SSDs) support 12 Gbs, versus SATA SSDs at 6 Gbs.
Optimized for enterprise application workloads, HPE Value SAS SSDs allow you to do more work with fewer servers by improving and consolidating transactional database workloads.
HPE Value SAS SSDs allow you to reduce operating costs for storing, powering and maintaining servers, as well as reducing your data center footprint.
Available in a variety of storage capacities, HPE Value SAS SSDs are the perfect choice for supporting read-intensive and mixed-use applications.

HPE Multi Vendor SSDs Offer Longer SKU Lifecycles and Immediate Availability on SATA SSDs
HPE enhanced its extensive SSD portfolio with a Multi Vendor SSD SKU offering that allows for extended SKU lifecycles, immediately available supply and preferably priced SATA SSDs.
HPE Multi Vendor SSD offering ensures the SATA SSD selected, delivers the minimum level of performance published, or better.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

The HPE 880295-B21 Mixed Use Solid State Drive has a 2.5 inch form factor and a 6 Gbps data transfer rate. It has a 240 GB capacity. This Small Form Factor Digitally Signed Firmware Solid State Drive uses a SATA-6Gbps interface and has 30 Days Warranty.

Specifications

Brand: HPE
MPN: 880295-B21

Option Part Number: 880295-B21
Spare Part Number: 882219-001
Model Number: MK000240GWKVK
Assembly Number: 877014-005

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 240 GB
Interface Type: SATA 6Gbps
Form Factor: 2.5 inch SFF
Flash Type: Multi-Level Cell (MLC)
Workload Type: Mixed Use
Carrier Type: Smart Carrier (SC)
Plug Type: Hot Plug
Features: Digitally Signed Firmware (DS)
Bundled with: HPE SmartDrive Carrier
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 7 mm

Performance

Drive Transfer Rate: 6 Gb/sec (external)
Endurance DWPD (Drive Writes Per Day): 3.0
MAX Seq. Reads Throughput (MiB/s): 500
MAX Seq. Writes Throughput (MiB/s): 240
Random Read Average Latency uSec (4KiB,Q1): 120
Random Write Average Latency uSec (4KiB,Q1): 48
Random Read IOPS (4KiB,Q=16): 59000
Random Write IOPS (4KiB,Q=16): 37000
MAX Random Read IOPS (4KiB): 65000@Q32
MAX Random Write IOPS (4KiB): 37000@Q4
4KiB Random 70% Read / 30% Write, Queue 32 Performance (IOPS) VI-1: 45000
4KiB Random 50% Read / 50% Write, Queue 32 Performance (IOPS) VI-2: 43000

Expansion & Connectivity

Compatible Bay: 2.5" SFF
Interfaces: 1 x SATA 6 Gb/s

Power Consumption

Idle Time: 1.25 Watt
Random Read: 2.45 Watt
Random Write: 3.40 Watt
Sequential Read: 2.37 Watt
Sequential Write: 3.40 Watt
Random R/W: 2.91 Watt

Compatibility Information

Designed for

HPE ProLiant BL Series: BL460c (Gen10) BL420c (Gen8 Gen9) BL460c (Gen8 Gen9) BL465c (Gen8 Gen9) BL660c (Gen8 Gen9)

HPE ProLiant DL Series: DL20 (Gen10) DL60 (Gen10) DL80 (Gen10) DL160 (Gen10) DL360 (Gen10) DL380 (Gen10) DL385 (Gen10) DL388 (Gen10) DL560 (Gen10) DL580 (Gen10) DL20 (Gen9) DL60 (Gen9) DL80 (Gen9) DL120 (Gen8 Gen9) DL160 (Gen8 Gen9) DL180 (Gen8 Gen9) DL320e (Gen8 Gen9) DL360 (Gen8 Gen9) DL360e (Gen8 Gen9) DL360p (Gen8 Gen9) DL388 (Gen9) DL380 (Gen8 Gen9) DL380e (Gen8 Gen9) DL380p (Gen8 Gen9) DL385 (Gen10) DL388 (Gen10) DL385p (Gen8 Gen9) DL560 (Gen8 Gen9) DL580 (Gen8 Gen9)

HPE ProLiant ML Series: ML110 (Gen10) ML350 (Gen10) ML110 (Gen8 Gen9) ML150 (Gen8 Gen9) ML310e (Gen8 Gen9) ML350 (Gen8 Gen9) ML350e (Gen8 Gen9) ML350p (Gen8 Gen9)

HPE ProLiant XL Series: XL230k (Gen10) XL170r (Gen9) XL190r (Gen9) XL220a (Gen9) XL230a (Gen9) XL250a (Gen9)

HPE ProLiant SL Series: SL230s (Gen8 Gen9) SL250s (Gen8 Gen9) SL270s (Gen8 Gen9)

HPE Synergy Systems: D3940 Storage Module D3940 Storage Module

HPE Storage Arrays: D3700 D2220sb StoreEasy 1830 1840

Please contact with us if you have any question or to know the compatibility of this with your current server or storage array.
