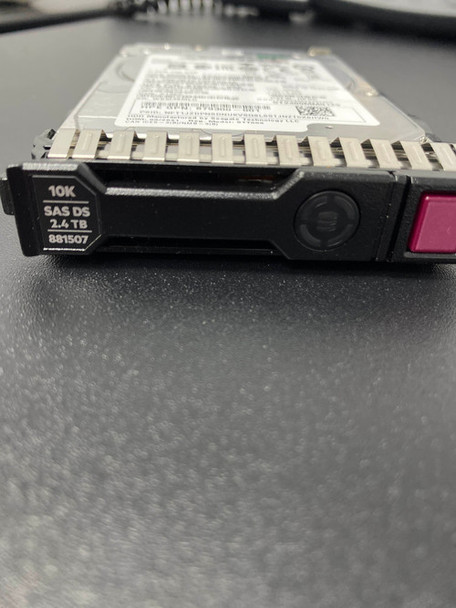

HPE EG002400JWJNN-SC 2.4TB 10kRPM 2.5in DS SAS 12G Enterprise G10 HDD

HPE EG002400JWJNN-SC 2.4TB 10000RPM 2.5inch SFF 512e Digitally Signed Firmware SAS-12Gbps Smart Carrier Enterprise Hard Drive for ProLiant Gen9 Gen10 Servers (New Sealed Spare with 1 Year Warranty)

HPE Server Enterprise Hard Drives offer the highest level of performance and reliability for your most demanding application workloads. Enterprise drives help you improve server response times, power more transactions per second, and accelerate data transfer (I/O) speeds. HPE Server Enterprise Hard Drives are backed by over 3.35 million hours of the industry’s most rigorous testing and qualification program, ensuring customers' reliable, rugged drives. Prevent unauthorized access to your data with HPE Digitally Signed Firmware. It provides the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks. The self-describing icons on the HPE Smart Carrier takes the guesswork out of a drive’s status, and a “do not remove” button prevents data loss from human error.

Performance and Reliability for Any Workload
HPE Server Enterprise Hard Drives are ideal for transaction processing, database applications, Big Data analytics, and high-performance computing.
Broad portfolio of customized solutions provide up to 2.4 TB of storage.
Efficient drives provide power for space constrained data centers.
Latest 12G SAS interface for increased performance.
Stable and consistent portfolio of drives offering long life cycles and steady supply.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.

The HPE EG002400JWJNN-SC Digitally Signed Firmware Enterprise Hard Drive has a 2.5 inch form factor and a 12Gbps external data transfer rate. It has a spindle speed of up to 10000 RPM and a 2.4 TB capacity. This Small Form Factor Dual Port Hard Drive uses a SAS-12Gbps (serial attached SCSI) interface and has 1 Year Warranty.

Specifications

Brand: HPE
MPN: EG002400JWJNN-SC

Option Part Number: 881457-B21
Spare Part Number: 881507-001
Model Number: EG002400JWJNN
Assembly Number: 876937-002
HPE GPN: 879300-001

General Specifications

Device Type: Hard Drive - Hot-Swap
Capacity: 2.4 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Plug Type: Hot Plug
Format Type: 512e
Carrier Type: Smart Carrier (SC)
Workload: Enterprise
Features: Advanced format 512e, Digitally Signed Firmware, Dual Port
Bundled with: HPE SmartDrive carrier

Performance

Drive Rotation Speed: 10000 RPM
Transfer Rate Synchronous (Max): 12Gb/sec
Average Seek Time: 3.7 ms
Max Seek Time: 7.3 ms max
OD Media Rate, Max Sequential Throughput (MiB/s): 255
128Kib Random Rd (IOPs): 160
128Kib Random 70% RD / 30% WT (IOPs): 180
128Kib Random 50% RD / 50% WT (IOPs): 195

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF

Environmental Parameters

Min Operating Temperature: 50° F (10°C)
Max Operating Temperature: 95° F (35°C)

Power Requirement

Idle Time: 4.80 Watt
Random R/W: 6.00 Watt
Sequential Read: 7.80 Watt
Sequential Write: 6.60 Watt

Product Dimensions

Height: 0.62 inch (15.60 mm)
Width: 2.98 inch (75.70 mm)
Depth: 4.67 inch (118.7 mm)

Compatibility Information

Designed for

HPE ProLiant DL Series: DL120 Gen9 (2.5 inch), DL120 Gen9 Entry (2.5 inch), DL160 Gen9 (2.5 inch), DL160 Gen9 Base (2.5 inch), DL160 Gen9 Entry (2.5 inch), DL160 Gen9 Performance (2.5 inch), DL160 Gen9 ThoughtSpot Server (2.5 inch), DL180 Gen9 (2.5 inch), DL180 Gen9 Base (2.5 inch), DL180 Gen9 Entry (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL20 Gen9 (2.5 inch), DL20 Gen9 Base (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL20 Gen9 Solution (2.5 inch), DL20 Gen9 Special Server (2.5 inch), DL360 Gen10 (2.5 inch), DL360 Gen10 Base (2.5 inch), DL360 Gen10 Entry (2.5 inch), DL360 Gen10 High-Performance (2.5 inch), DL360 Gen10 Performance (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL380 Gen10 (2.5 inch), DL380 Gen10 Base (2.5 inch), DL380 Gen10 Entry (2.5 inch), DL380 Gen10 High-Performance (2.5 inch), DL380 Gen10 Performance (2.5 inch), DL380 Gen10 Solution (2.5 inch), DL385 Gen10 (2.5 inch), DL385 Gen10 Base (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 High-Performance (2.5 inch), DL385 Gen10 Performance (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL580 Gen10 (2.5 inch), DL580 Gen10 Base (2.5 inch), DL580 Gen10 Entry (2.5 inch), DL580 Gen10 Performance (2.5 inch) Servers

HPE ProLiant ML Series: ML110 Gen10 (2.5 inch), ML110 Gen10 Performance (2.5 inch), ML110 Gen10 Solution (2.5 inch), ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML150 Gen9 (2.5 inch), ML150 Gen9 Base (2.5 inch), ML150 Gen9 Entry (2.5 inch), ML150 Gen9 Performance (2.5 inch), ML30 Gen9 (2.5 inch), ML30 Gen9 Base (2.5 inch), ML30 Gen9 Entry (2.5 inch), ML30 Gen9 Performance (2.5 inch), ML30 Gen9 Solution (2.5 inch), ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch) Servers

HPE ProLiant XL Series: XL170r Gen10 (2.5 inch), XL450 Gen10 (2.5 inch) Servers

Please contact with us if you have any question or to know the compatibility of this with your current server or storage array.
