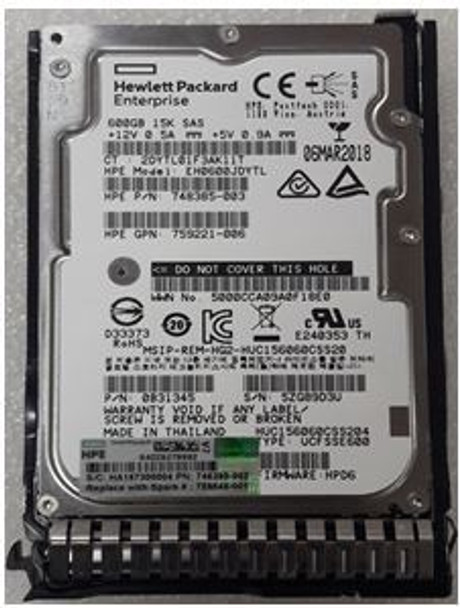

HPE EH0600JDYTL-SC 600GB 15kRPM 2.5in SAS-12G Enterprise G8 G9 HDD

HPE EH0600JDYTL-SC 600GB 15000RPM 2.5inch SFF SAS-12Gbps Smart Carrier Enterprise Hard Drive for ProLiant Gen8 Gen9 Gen10 Servers (New Bulk Pack with 90 Days Warranty)

HPE Server Enterprise Hard Drives offer the highest level of performance and reliability for your most demanding application workloads. Enterprise drives help you improve server response times, power more transactions per second, and accelerate data transfer (I/O) speeds. HPE Server Enterprise Hard Drives are backed by over 3.35 million hours of the industry’s most rigorous testing and qualification program, ensuring customers' reliable, rugged drives. The self-describing icons on the HPE Smart Carrier takes the guesswork out of a drive’s status, and a “do not remove” button prevents data loss from human error.

Performance and Reliability for Any Workload
HPE Server Enterprise Hard Drives are ideal for transaction processing, database applications, Big Data analytics, and high-performance computing.
Broad portfolio of customized solutions provide up to 2.4 TB of storage.
Efficient drives provide power for space constrained data centers.
Latest 12G SAS interface for increased performance.
Stable and consistent portfolio of drives offering long life cycles and steady supply.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.

The HPE EH0600JDYTL-SC Enterprise Hard Drive has a 2.5 inch form factor and a 12 Gbps external data transfer rate. It has a spindle speed of up to 15000 RPM and a 600 GB capacity. This Small Form Factor dual port hard drive uses a SAS-12Gbps (Serial attached SCSI) interface and has 90 Days Warranty.

Specifications

Brand: HPE
MPN: EH0600JDYTL-SC

Option Part Number: 759212-B21
Spare Part Number: 759548-001
Model Number: EH0600JDYTL
Assembly Number: 748385-003
HPE GPN: 759221-006

General

Device Type: Hard Drive - Hot-Swap
Capacity: 600 GB
Form Factor: 2.5 inch SFF
Interface: SAS 12 Gbps
Bytes per Sector: 512
Drive Technology (Fill): Air
Plug Type: Hot Plug
Carrier Type: Smart Carrier (SC)
Workload: Enterprise
Features: Dual Port
Bundled with: HPE SmartDrive Carrier

Performance

Drive Transfer Rate: 1.2 GBps (external)
Seek Time: 2.9 ms (average) / 5.9 ms (max)
Track-to-Track Seek Time: 0.15 ms
Spindle Speed: 15000 RPM

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF

Dimension & Weight

Width: 3.10 inch
Depth: 5.40 inch
Height: 0.60 inch
Weight: 15.87 oz

Miscellaneous

Compliant Standards: WEEE

Environmental Parameters

Min Operating Temperature: 50 °F
Max Operating Temperature: 95 °F

Compatibility Information

Designed for

HPE ProLiant BL Series: BL460c Gen10 (2.5 inch), BL460c Gen8 (2.5 inch), BL660c Gen9 (2.5 inch)

HPE ProLiant DL Series: DL180 Gen9 (2.5 inch), DL180 Gen9 Base (2.5 inch), DL180 Gen9 Entry (2.5 inch), DL180 Gen9 Storage (2.5 inch), DL20 Gen9 (2.5 inch), DL20 Gen9 Entry (2.5 inch), DL20 Gen9 Performance (2.5 inch), DL320e Gen8 (2.5 inch), DL320e Gen8 Base (2.5 inch), DL320e Gen8 Entry (2.5 inch), DL320e Gen8 Performance (2.5 inch), DL320e Gen8 Special Server (2.5 inch), DL320e Gen8 v2 (2.5 inch), DL320e Gen8 v2 Base (2.5 inch), DL320e Gen8 v2 Performance (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360 Gen9 Entry (2.5 inch), DL360p Gen8 (2.5 inch), DL360p Gen8 CMS (2.5 inch), DL360p Gen8 Performance (2.5 inch), DL360p Gen8 Special Server (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380p Gen8 Performance (2.5 inch), DL385p Gen8 (2.5 inch), DL385p Gen8 Entry (2.5 inch), DL385p Gen8 Storage (2.5 inch), DL385p Gen8 Storage Centric (2.5 inch), DL388 Gen9 (2.5 inch), DL388 Gen9 Base (2.5 inch), DL388p Gen8 (2.5 inch), DL560 Gen8 (2.5 inch), DL560 Gen8 Base (2.5 inch), DL560 Gen8 Entry (2.5 inch), DL560 Gen8 Performance (2.5 inch), DL560 Gen9 (2.5 inch), DL560 Gen9 Base (2.5 inch), DL560 Gen9 Entry (2.5 inch), DL560 Gen9 Performance (2.5 inch), DL580 Gen8 (2.5 inch), DL580 Gen8 Base (2.5 inch), DL580 Gen8 High Performance (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch)

HPE ProLiant ML Series: ML110 Gen9 (2.5 inch), ML110 Gen9 Base (2.5 inch), ML110 Gen9 Entry (2.5 inch), ML30 Gen9 (2.5 inch), ML30 Gen9 Base (2.5 inch), ML30 Gen9 Performance (2.5 inch), ML350 Gen9 (2.5 inch), ML350 Gen9 Base (2.5 inch), ML350 Gen9 Entry (2.5 inch), ML350 Gen9 Performance (2.5 inch), ML350p Gen8 (2.5 inch), ML350p Gen8 Special Server (2.5 inch)

HPE ProLiant WS Series: WS460c Gen9 Graphics (2.5 inch), WS460c Gen9 Graphics Expansion (2.5 inch)

HPE ProLiant XL Series: XL170r Gen9 (2.5 inch), XL190r Gen9 (2.5 inch), XL230a Gen9 Compute Tray (2.5 inch), XL230a Gen9 Compute Tray (12G) (2.5 inch), XL230a Gen9 Compute Tray (6G) (2.5 inch), XL230a Gen9 NHP Compute Tray (12G), XL230k Gen10 Compute Tray (2.5 inch), XL250a Gen9 Accelerator Tray (2.5 inch)

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
