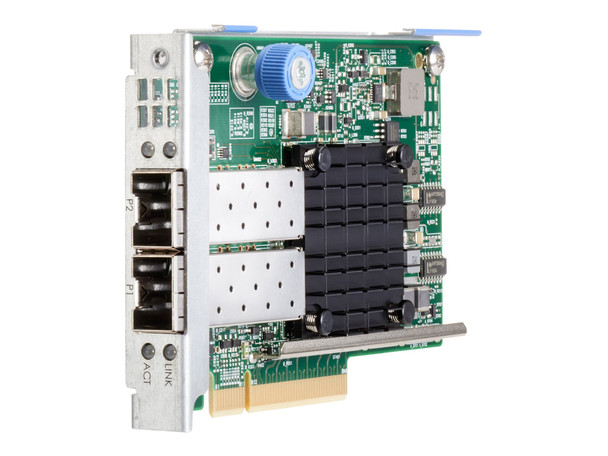

HPE Ethernet P12925-001 10Gb 2-Port SFP+ Network Adapter for G10

HPE P12925-001 Ethernet 10Gb Dual Port PCI Express 3.0 x8 FLR-SFP+ Network Adapter for ProLiant Generation10 Servers (Brand New with 3 Years Warranty)

This 10GbE 2-port BCM57414 SFP+ Adapter is a recommended option that has been selected by HPE experts to provide the right technology for a range of workloads and market segments offering the best combination of performance, value and availability.

The HPE Ethernet 10Gb 2-port BCM57414 SFP+ Adapter, featuring the next generation of 10Gb Ethernet integration offering a single chip solution on a FlexibleLOM form factor, further reducing power requirements for 2 ports of 10Gb Ethernet. It is designed for use with HPE ProLiant servers.

The HPE BCM57414 dual-port design is ideal for high performance computing, server virtualization, security, server consolidation, and other applications requiring highest throughput. The total aggregate throughput of 20Gb meets the needs for customers desiring highest bandwidth.

The HPE P12925-001 Ethernet 10 Gb Dual Port BCM57414 SFP+ Network Adapter offers the latest SDN features in a FlexibleLOM form factor. The HPE BCM57414 SFP+ is a feature rich, low power dual port PCIe v3.0 x8 lane adapter designed for use in HPE ProLiant Gen10 Rack and Density Optimized servers. This Dual Port Network Adapter comes with 3 Years Warranty.

Specifications

Brand: HPE
MPN: P12925-001

Option Part Number: P08440-B21
Spare Part Number: P12925-001

General

Device Type: Network Adapter
Form Factor: Plug-in card
Interface (Bus) Type: PCI Express 3.0 x8
Supported Cables: 10 Gb - Active Optical Cable (AOC), 10 Gb - Direct Attach Copper Cable (DAC)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy

Networking

Ports: 10 Gigabit SFP+ x 2
Connectivity Technology: Wired
Data Link Protocol: 10 Gigabit Ethernet
Data Transfer Rate: 10 Gbps
Compliant Standards: OCP 3.0
IEEE Compliance: 802.3, 802.3ae, 802.3x, 802.2x, 802.3ad, 802.1Qaz, 802.1Qau, 802.1Qbb,802.1Qbg, 802.1ax, 1588
Compatible Operating Systems: Microsoft Windows Server 2012 R2 All editions, Microsoft Semi-Annual Channel Release, Microsoft Windows Server 2016 All editions (LTSC Release), Microsoft Windows Server 2019 (LTSC Release), RHEL 8.0,8.1, 7.6, 7.7, SLES 12 SP3, SP4, SP5, SLES SP1, VMware vSphere 6.5 U2, U3, VMware vSphere 6.7 U2, U3, VMware vSphere 7.0

Expansion & Connectivity

Interfaces: 2 x 10Gb Ethernet - SFP+

Processor / Memory

Processor: Broadcom

Power Specification

Typical Power Consumption: 9.08 Watt
Maximum Power Consumption: 14.00 Watt

Product Dimensions & Weight

Height: 2.43 inch (6.17 cm)
Width: 8.44 inch (21.44 cm)
Depth: 9.72 inch (24.69 cm)
Weight: 0.553 lbs (0.25 kg)

Compatibility Information

Designed for

HPE ProLiant DL Series: DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice for CTERA

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
