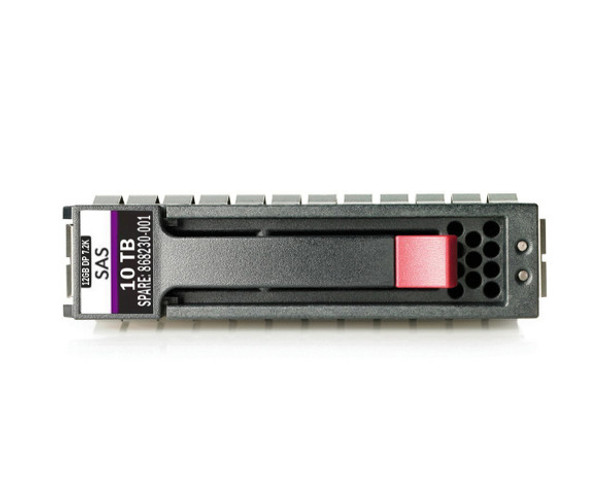

HPE MSA P9M82A 10TB 7200RPM 3.5in SAS-12G Midline HDD

HPE Helium P9M82A 10TB 7200RPM 3.5inch Large Form Factor Dual Port 512e SAS-12Gbps Midline Hard Drive for Modular Smart Array 1040/2040 LFF SAN Storage (Brand New with 3 Years Warranty)

HPE Server Midline Hard Drives deliver the highest capacity, performance and reliability to your datacenter applications. Midline hard drives allow you to store more data without sacrificing performance or reliability; they are ideal to store all your bulk storage requirements. HPE Server Midline Hard Drives are available in both 3.5-inch Large Form Factor (LFF) and 2.5-inch Small Form Factor (SFF) and ship with a standard one-year warranty. All HPE hard drives pass a rigorous qualification process, which certify that every drive is proven to perform in your HPE ProLiant Server environments. Before final certification, all HPE Server Midline Hard Drives are optimized for compatibility and functionality, including support of SMART and HPE Systems Insight Manager.

Designed and Engineered to Provide High Capacity and Reliable Secure Storage
HPE Server Midline Hard Drives are ideal for the growing volume of digital content, bulk data storage, cloud and web infrastructure environments.
Broad portfolio of optimized solutions provide up to 12 TB of storage, and growing in a single device.
Rotational Vibration Sensors deliver enhanced rotational vibration tolerance that provides enterprise class reliability in midline drives.
Available in 2.5-inch Small Form Factor (SFF) and 3.5-inch Large Form Factor (LFF) in a wide variety of capacity points.
Prevent unauthorized access to your data with HPE Digitally Signed Firmware.
It provides the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Support Entry/SMB servers with value priced drives
HPE Server Midline Hard Drives have lower start-up costs without sacrificing reliability at the lowest $/GB.
Non-mission critical hard drives at the lowest $/GB.
6 Gb/sec data transfer rate to support existing servers.

Helium Drives
Although hard drives are sealed, they have air inside. Air can create turbulence-induced risk vibrations which can limit the storage density of HDDs. Newer helium-filled drives virtually eliminate turbulence because helium is 1/7th as dense as air. This lower density allows the read/write mechanism to spin more easily and precisely, with less drag. Less internal turbulence means the drive platters can be closer together, allowing more platters and increasing the capacity potential in the same space. Less turbulence also means helium drives tend to use less power, and run cooler and quieter.

Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.

The HPE MSA P9M82A Midline Hard Drive has a 3.5 inch form factor and 12 Gbps external data transfer rate. It has a spindle speed up to 7200 RPM and has a 10 TB storage capacity. This Large Form Factor Dual Port Helium Hard Drive uses a SAS-12Gbps interface and comes with 3 Years Warranty.

Specification

Brand: HPE
MPN: P9M82A

Option Part Number: P9M82A
Spare Part Number: 868230-001
Model Number: HUH721010AL5204
Model Number: ST10000NM002G
Model Number: ST10000NM0528
Assembly Number: 868151-002
HPE GPN: 867943-001

General

Device Type: Hard Drive - Hot-Swap
Capacity: 10 TB
Form Factor: 3.5 inch LFF
Interface: SAS 12Gbps
Bytes per Sector: 512
Drive Technology (Fill): Helium
Plug Type: Hot Plug
Format Type: 512e
Carrier Type: Standard MSA Carrier
Workload: Midline
Features: Dual Port, Advanced Format 512e
Bundled with: HPE Standard MSA Carrier

Performance

Rotational Speed: 7200 RPM
Transfer Rate Synchronous (Max): 12Gb/sec
Single Track Seek Time: 0.22 ms
Average Seek Time: 8.00 ms
Full Stroke Seek Time: 16.00 ms
OD Media Rate, Max Sequential Throughput (MiB/s): 235
128Kib Random Rd (IOPs): 105
128Kib Random 70% RD/ 30% WT (IOPs): 110
128Kib Random 50% RD/ 50% WT (IOPs): 115

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 3.5" LFF

Environmental Parameters

Min Operating Temperature: 50 °F (10°C)
Max Operating Temperature: 95 °F (35°C)

Dimensions

Height: 1.10 inch
Width: 4.40 inch
Depth: 7.40 inch

Compatibility Information

Designed for

HPE Modular Smart Array: MSA 1040 Dual Controller LFF Storage Array, MSA 2040 LFF Chassis, MSA 2040 LFF DC-power Chassis, MSA 2040 LFF Disk Enclosure, MSA 2040 SAN Dual Controller LFF Storage Array, MSA 2040 SAS Dual Controller LFF Storage Array, MSA 2042 SAN Dual Controller LFF Storage Array, MSA 2042 SAS Dual Controller LFF Storage Array

Please contact with us if you have any question or to know the compatibility of this with your current server or storage array.
