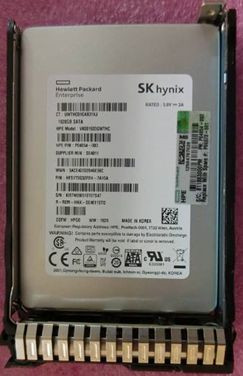

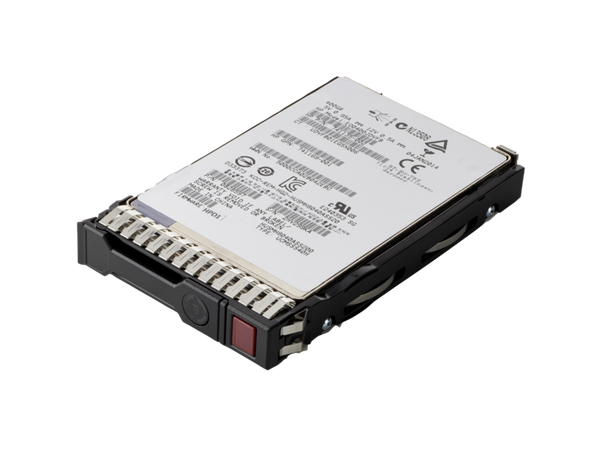

HPE P06198-H21 1.92TB 2.5in DS SATA 6G SC Read Intensive G9 G10 SSD

HPE P06198-H21 1.92TB 2.5inch Small Form Factor (SFF) Digitally Signed Firmware (DS) SATA-6Gbps Smart Carrier (SC) Read Intensive Solid State Drive for ProLiant Gen8 Gen9 Generation10 Servers (New Sealed Spare with 1 Year Warranty)

HPE Server Read Intensive (RI) Solid State Drives (SSDs) deliver high performance and endurance for applications requiring high random read IOPS performance.
HPE (RI) SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high performing drives.
HPE Value SAS SSDs offer a significant performance boost over SATA SSDs with roughly twice the IOPS of SATA SSDs, enabling you to improve transactional database workloads with affordable Value SAS SSDs.
HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that drive firmware comes from a trusted source. Icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a "do not remove" button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge, allowing you to determine if any drives are at risk of failure.

High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
HPE Solid State Drives are ideal for big data analytics, cloud computing, active archiving, database applications and data warehousing.
Achieve higher IOPs to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.
12 Gb/s SAS, 6 Gb/s SATA, NVMe, M.2, and M.2 Enablement Kits.

Value SAS SSDs Offer Twice the IOPS of SATA SSDs, Significantly Improving Workload Performance
HPE Value SAS Solid State Drives (SSDs) support 12 Gbs, versus SATA SSDs at 6 Gbs.
Optimized for enterprise application workloads, HPE Value SAS SSDs allow you to do more work with fewer servers by improving and consolidating transactional database workloads.
HPE Value SAS SSDs allow you to reduce operating costs for storing, powering and maintaining servers, as well as reducing your data center footprint.
Available in a variety of storage capacities, HPE Value SAS SSDs are the perfect choice for supporting read-intensive and mixed-use applications.

Multi-vendor SSDs Offer Longer SKU Lifecycles and Immediate Availability on SATA SSDs
HPE enhanced its extensive SSD portfolio with a multi-vendor SSD offering that allows for extended SKU lifecycles, immediately available supply and preferably priced SATA SSDs.
HPE multi-vendor SSD offering ensures the SATA SSD selected, delivers the minimum level of performance published, or better.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

HPE Solid State Drives offer the speed, flexibility and expandability to meet your growing storage capacity requirements.

The HPE P06198-H21 Read Intensive Solid State Drive has a 2.5 inch form factor and a 6 Gbps external data transfer rate. It has a 1.92 TB capacity. This Small Form Factor Digitally Signed Firmware (DS) Solid State Drive uses a SATA-6Gbps interface and has 1 Year Warranty.

Specifications

Brand: HPE
MPN: P06198-H21

Option Part Number: P06198-H21
Spare Part Number: P06573-001
Model Number: VK001920GWTHC
Assembly Number: P04954-003

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 1.92 TB
Form Factor: 2.5 inch SFF
Interface Type: SATA 6Gbps
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
Workload Type: Read Intensive
Features: Digitally Signed Firmware (DS)
Bundled with: HPE Smart Carrier
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 7 mm

Performance

30 Days Writes: 3100
Endurance DWPD (Drive Writes Per Day): 0.9
Drive Transfer Rate (External): 6 Gb/sec
Random Read IOPS (4KiB, Q=16): 55500
Max Random Read IOPS (4KiB): 56000@Q32
Random Write IOPS (4KiB, Q=16): 31000
Max Random Write IOPS (4KiB): 32500@Q4

Expansion & Connectivity

Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 2.5" SFF

Power

Power Requirement: 0.81 Watts

Product Dimensions & Weight

Height: 5.00 inch (12.70 cm)
Width: 7.00 inch (17.78 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)

Compatibility Information

Designed for

HPE ProLiant DL Series: DL20 Gen10 (2.5 inch), DL20 Gen10 Entry (2.5 inch), DL20 Gen10 Performance (2.5 inch), DL20 Gen10 solution (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 High Performance (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (2.5 inch), DL380 Gen9 Special (2.5 inch)

HPE ProLiant ML Series: ML30 Gen10 (2.5 inch), ML30 Gen10 Entry (2.5 inch), ML30 Gen10 Performance (2.5 inch), ML30 Gen10 Solution (2.5 inch)

HPE ProLiant XL Series: XL270d Gen10 (2.5 inch), XL270d Gen9 (2.5 inch)

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
