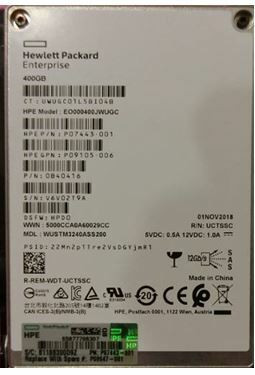

HPE P09098-H21 400GB 2.5in DS SAS-12G SC Write Intensive G9 G10 SSD

HPE P09098-H21 400GB 2.5inch Small Form Factor Multi-Level Cell Digitally Signed Firmware SAS-12Gbps Smart Carrier Write Intensive Solid State Drive for ProLiant Gen9 Gen10 Server (Brand New with 3 Years Warranty)

HPE Server Write Intensive (WI) Solid State Drives (SSDs) deliver high performance and endurance while reducing power consumption for customers with applications requiring high random read and write IOPS performance. HPE Server WI SSDs offer the highest performance for write intensive applications and typically have an endurance of <10 drive writes per day. All HPE SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high performing drives. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that drive firmware comes from a trusted source. The self-describing icons on the HPE Smart Carrier take the guess work out of a drive’s status and a “do not remove” button prevents data loss from human error. Monitor the lifespan of your SSD with HPE Smart WearGauge compatibility in management tools.

HPE SSDs offer High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
Ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.
Achieve higher IOPS to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.
12 Gb SAS and NVMe.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

The HPE P09098-H21 Mixed Use Solid State Drive has a 2.5 inch form factor and a 12 Gbps data transfer rate. It has a 400 GB capacity. This Small Form Factor Digitally Signed Firmware Solid State Drive uses a SAS-12Gbps interface and comes with 3 Years Warranty.

Specification

Brand: HPE
MPN: P09098-H21

Option Part Number: P09098-H21
Spare Part Number: P09947-001
Model Number: EO000400JWUGC
Assembly Number: P07443-001

General

Device Type: Solid state drive - hot-swap
Capacity: 400 GB
NAND Flash Memory Type: Multi-level cell (MLC)
Form Factor: 2.5 inch SFF
Interface: SAS 12Gb/s
Features: Digitally Signed Firmware
Workload Type: Write Intensive
Carrier Type: Smart Carrier (SC)
Plug Type: Hot Plug
Bundled with: HPE Smart Carrier

Performance

Drive Writes Per Day (DWPD): 10
SSD Endurance: 7000 TB
Drive Transfer Rate: 1.2 GBps (external)
Internal Data Rate: 1095 MBps (read) / 1015 MBps (write)
30 Days Writes: 7000
Random Read IOPS (4KiB, Q=16): 140000
Max Random Read IOPS (4KiB): 210000@Q32
Random Write IOPS (4KiB, Q=16): 120000
Max Random Write IOPS (4KiB): 120000@Q16

Expansion & Connectivity

Interfaces: 1 x SAS 12Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Maximum: 5.74 Watt
Random Read: 5.22 Watt
Random Write: 5.22 Watt
Sequential Read: 4.07 Watt
Sequential Write: 5.74 Watt
Random Read/Write: 5.22 Watt

Product Dimensions

Height: 8.75 inch
Width: 7.25 inch
Depth: 5.5 inch
Weight: 1.1 lb

Compatibility Information

Designed For

HPE ProLiant BL Series: BL460c Gen10 (2.5 inch)

HPE ProLiant DL Series: DL325 Gen10 (2.5 inch), DL325 Gen10 Entry (2.5 inch), DL325 Gen10 Performance (2.5 inch), DL325 Gen10 SMB Solution (2.5 inch), DL360 Gen9 (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360 Gen9 Performance (2.5 inch), DL360 Gen9 Special Server (2.5 inch), DL380 Gen10 (2.5 inch), DL380 Gen10 Base (2.5 inch), DL380 Gen10 Entry (2.5 inch), DL380 Gen10 High Performance (2.5 inch), DL380 Gen10 Performance (2.5 inch), DL380 Gen10 Solution (2.5 inch), DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (2.5 inch), DL380 Gen9 Special (2.5 inch), DL385 Gen10 (2.5 inch), DL385 Gen10 Base (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 High-Preperformance (2.5 inch), DL385 Gen10 High-Performance (2.5 inch), DL385 Gen10 Performance (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL560 Gen10 (2.5 inch), DL560 Gen10 Base (2.5 inch), DL560 Gen10 Entry (2.5 inch), DL560 Gen10 Performance (2.5 inch), DL580 Gen10 (2.5 inch), DL580 Gen10 Base (2.5 inch), DL580 Gen10 Entry (2.5 inch), DL580 Gen10 Performance (2.5 inch)

HPE ProLiant ML Series: ML110 Gen10 (2.5 inch), ML110 Gen10 Entry (2.5 inch), ML110 Gen10 Performance (2.5 inch), ML110 Gen10 Solution (2.5 inch), ML350 Gen10 (2.5 inch), ML350 Gen10 Base (2.5 inch), ML350 Gen10 Entry (2.5 inch), ML350 Gen10 Performance (2.5 inch), ML350 Gen10 Solution (2.5 inch), ML350 Gen10 Sub-Entry (2.5 inch)

HPE ProLiant XL Series: XL170r Gen10 (2.5 inch), XL190r Gen10 (2.5 inch), XL230k Gen10 Compute Tray (2.5 inch)

HPE Synergy 480 Gen10 Base Compute Module (2.5 inch), 480 Gen10 Compute Module (2.5 inch), 480 Gen10 Entry Compute Module (2.5 inch), 480 Gen10 Performance Compute Module (2.5 inch), 480 Gen10 Premium Backplane Compute Module (2.5 inch), 480 Gen10 Standard BackPlane Compute Module (2.5 inch), 480 Gen10 w/o Drives Compute Module (2.5 inch), 660 Gen10 Base Compute Module (2.5 inch), 660 Gen10 Compute Module (2.5 inch), 660 Gen10 Entry Compute Module (2.5 inch), 660 Gen10 Performance Compute Module (2.5 inch), 660 Gen10 Premium Compute Module (2.5 inch), 680 Gen9 4S-EX Base Compute Module (2.5 inch), 680 Gen9 4S-EX Compute Module (2.5 inch), 680 Gen9 4S-EX Performance Compute Module (2.5 inch)

Please contact with us if you have any question or to know the compatibility of this with your current server or storage array.
