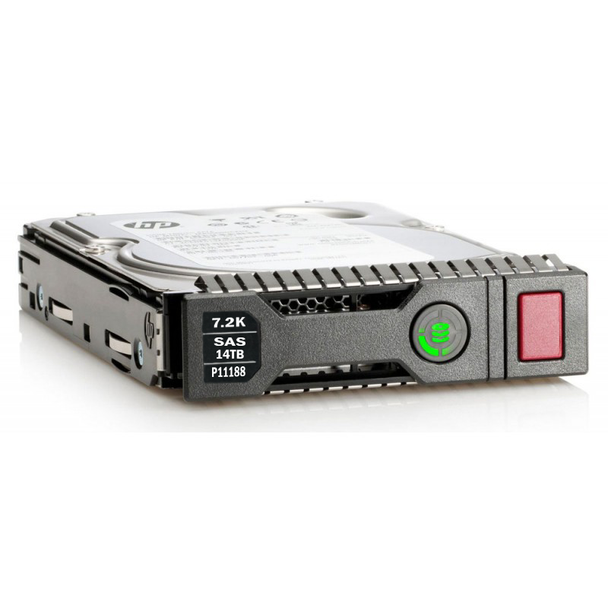

HPE P09153-X21 14TB 7200RPM 3.5in DS SAS-12G SC Midline G10 HDD

HPE Helium P09153-X21 14TB 7200RPM 3.5inch Large Form Factor (LFF) Digitally Signed Firmware (DS) 512e SAS-12Gbps Smart Carrier Midline Hard Drive for ProLiant Gen9 Gen10 Servers (Brand New with 3 Years Warranty)

HPE Server Midline Hard Drives deliver the highest capacity, performance and reliability to your datacenter applications. Midline hard drives allow you to store more data without sacrificing performance or reliability; they are ideal to store all your bulk storage requirements. HPE Server Midline Hard Drives are available in both 3.5-inch Large Form Factor (LFF) and 2.5-inch Small Form Factor (SFF) and ship with a standard one-year warranty. All HPE hard drives pass a rigorous qualification process, which certify that every drive is proven to perform in your HPE ProLiant Server environments. Before final certification, all HPE Server Midline Hard Drives are optimized for compatibility and functionality, including support of SMART and HPE Systems Insight Manager.

Designed and Engineered to Provide High Capacity and Reliable Secure Storage
HPE Server Midline Hard Drives are ideal for the growing volume of digital content, bulk data storage, cloud and web infrastructure environments.
Broad portfolio of optimized solutions provide up to 14 TB of storage, and growing in a single device.
Rotational Vibration Sensors deliver enhanced rotational vibration tolerance that provides enterprise class reliability in midline drives.
Available in 2.5-inch Small Form Factor (SFF) and 3.5-inch Large Form Factor (LFF) in a wide variety of capacity points.
Prevent unauthorized access to your data with HPE Digitally Signed Firmware.
It provides the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

SmartDrive Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.

Helium Drives
Although hard drives are sealed, they have air inside. Air can create turbulence-induced risk vibrations which can limit the storage density of HDDs. Newer helium-filled drives virtually eliminate turbulence because helium is 1/7th as dense as air. This lower density allows the read/write mechanism to spin more easily and precisely, with less drag. Less internal turbulence means the drive platters can be closer together, allowing more platters and increasing the capacity potential in the same space. Less turbulence also means helium drives tend to use less power, and run cooler and quieter.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

The HPE P09153-X21 Midline Helium Hard Drive has a 3.5 inch form factor and 12 Gbps external data transfer rate. It has a spindle speed up to 7200 RPM and has a 14 TB storage capacity. This Large Form Factor Digitally Signed Firmware Hard Drive uses a SAS-12Gbps interface and comes with 3 Years Warranty.

Specification

Brand: HPE
MPN: P09153-X21

Option Part Number: P09153-X21
Spare Part Number: P11188-001
Model Number: MB014000JWTFD
Assembly Number: P04385-002

General

Device Type: Hard Drive - Hot-Swap
Capacity: 14 TB
Bytes per Sector: 512
Features: Advanced format 512e, filled with Helium, Digitally Signed Firmware
Form Factor: 3.5inch LFF
Interface: SAS 12Gbps
Drive Technology (Fill): Helium
Format Type: 512n
Carrier Type: Smart Carrier
Workload: Midline
Bundled with: HPE Smart Carrier
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy

Performance

Drive Transfer Rate: 12 Gb/sec (external)
Spindle Speed: 7200 RPM
OD Media Rate, Max Sequential Throughput (MiB/s): 250
128Kib Random Read (IOPs): 105
128Kib Random 70% Read 30% Write (IOPs): 115
128Kib Random 50% Read 50% Write (IOPs): 120

Expansion & Connectivity

Compatible Bay: 3.5" LFF
Interfaces: 1 x SAS 12 Gb/s

Product Dimensions & Weight

Width: 4.20 inch
Height: 1.10 inch
Depth: 6.70 inch
Weight: 3.00 lbs (1.36 kg)

Environmental Parameters

Max Operating Temperature: 95 °F
Min Operating Temperature: 50 °F

Power Consumption

Idle: 5.30 Watt
Random Read/Write: 8.50 Watt
Sequential Read: 7.40 Watt
Sequential Write: 6.90 Watt

Compatibility Information

Designed for

HPE ProLiant DL Series: DL360 Gen10 (3.5 inch), DL360 Gen10 Base (3.5 inch), DL360 Gen10 Entry (3.5 inch), DL360 Gen10 High Performance (3.5 inch), DL360 Gen10 Low (3.5 inch), DL360 Gen10 Performance (3.5 inch), DL360 Gen10 Solution (3.5 inch), DL360 Gen9 (3.5 inch), DL360 Gen9 Base (3.5 inch), DL360 Gen9 CMS (3.5 inch), DL360 Gen9 Entry (3.5 inch), DL360 Gen9 Performance (3.5 inch), DL360 Gen9 Special Server (3.5 inch), DL380 Gen10 (3.5 inch), DL380 Gen10 Base (3.5 inch), DL380 Gen10 Entry (3.5 inch), DL380 Gen10 High Performance (3.5 inch), DL380 Gen10 Performance (3.5 inch), DL380 Gen10 Solution (3.5 inch), DL385 Gen10 (3.5 inch), DL385 Gen10 Base (3.5 inch), DL385 Gen10 Entry (3.5 inch), DL385 Gen10 High-Performance (3.5 inch), DL385 Gen10 High-Performance (3.5 inch), DL385 Gen10 Performance (3.5 inch), DL385 Gen10 Solution (3.5 inch)

Please contact with us if you have any question or to know the compatibility of this with your current server or storage array.
