HP

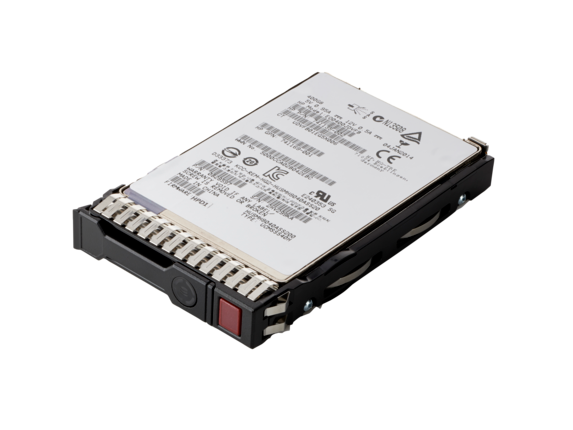

HPE P09712-B21 480GB 2.5in DS SATA-6G SC Mixed Use G9 G10 SSD

SKU:
P09712-B21
UPC:
190017323503
MPN:
P09712-B21
Condition:
New
Availability:
Out Of Stock
  • HPE P09712-B21 480GB 2.5inch SFF MLC Digitally Signed Firmware SATA-6Gbps Smart Carrier Mixed Use Solid State Drive for ProLiant Gen9 Gen10 Server (Brand New with 3 Years Warranty)
  • HPE P09712-B21 480GB 2.5inch SFF MLC Digitally Signed Firmware SATA-6Gbps Smart Carrier Mixed Use Solid State Drive for ProLiant Gen9 Gen10 Server (Brand New with 3 Years Warranty)
  • HPE P09712-B21 480GB 2.5inch SFF MLC Digitally Signed Firmware SATA-6Gbps Smart Carrier Mixed Use Solid State Drive for ProLiant Gen9 Gen10 Server (Brand New with 3 Years Warranty)
$449.95

Out of stock

Description

HPE P09712-B21 480GB 2.5inch SFF Multi-Level Cell (MLC) Digitally Signed Firmware SATA-6Gbps Smart Carrier Mixed Use Solid State Drive for ProLiant Gen9 Gen10 Server (Brand New with 3 Years Warranty)

HPE Servers Mixed Use (MU) Solid State Drives (SSDs) deliver high performance and endurance for applications requiring high random read and write IOPS performance. HPE (MU) SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high-performing drives.
HPE Value SAS SSDs offer a significant performance boost over SATA SSDs with roughly twice the IOPS of SATA SSDs, enabling you to improve transactional database workloads with affordable Value SAS SSDs. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that firmware comes from a trusted source. Icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a "do not remove" button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge, allowing you to determine if any drives are at risk of failure.

High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
HPE solid-state drives are ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.
Achieve higher IOPS to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.
12 Gb/s SAS, 6 Gb/s SATA, and NVMe.

Value SAS SSDs Offer Twice the IOPS of SATA SSDs, Significantly Improving Workload Performance
HPE Value SAS solid-state drives (SSDs) support 12 Gbs, versus SATA SSDs at 6 Gbs.
Optimized for enterprise application workloads, HPE Value SAS SSDs allow you to do more work with fewer servers by improving and consolidating transactional database workloads.
HPE Value SAS SSDs allow you to reduce operating costs for storing, powering and maintaining servers, as well as reducing your data center footprint.
Available in a variety of storage capacities, HPE Value SAS SSDs are the perfect choice for supporting read-intensive and mixed-use applications.

HPE Multi Vendor SSDs Offer Longer SKU Lifecycles and Immediate Availability on SATA SSDs
HPE enhanced its extensive SSD portfolio with a Multi Vendor SSD SKU offering that allows for extended SKU lifecycles, immediately available supply and preferably priced SATA SSDs.
HPE Multi Vendor SSD offering ensures the SATA SSD selected, delivers the minimum level of performance published, or better.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

The HPE P09712-B21 Mixed Use Solid State Drive has a 2.5 inch form factor and a 6 Gbps data transfer rate. It has a 480 GB capacity. This Small Form Factor Digitally Signed Firmware Solid State Drive uses a SATA-6Gbps interface and comes with 3 Years Warranty.

Specifications

Brand: HPE
MPN: P09712-B21

Option Part Number: P09712-B21
Spare Part Number: P09907-001

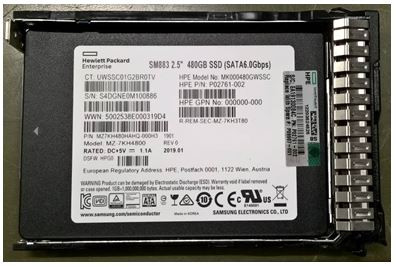

Model Number: MK000480GWSSC
Assembly Number: P02761-002

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 480 GB
NAND Flash Memory Type: Multi-level cell (MLC)
Form Factor: 2.5 inch SFF
Interface: SATA 6Gbps
Features: Digitally Signed Firmware
Workload Type: Mixed Use
Carrier Type: Smart Carrier (SC)
Plug Type: Hot Plug
Bundled With: HPE Smart Carrier

Performance

Drive Writes Per Day (DWPD): 3.5
Drive Transfer Rate: 600 MBps (external)
30 Days Writes: 3000
Random Read IOPS (4KiB, Q=16): 70000
Max Random Read IOPS (4KiB): 80000@Q32
Random Write IOPS (4KiB, Q=16): 29000
Max Random Write IOPS (4KiB): 29000@Q4

Expansion & Connectivity

Interfaces: 1 x SATA 6Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle: 1.12 Watt
Random Read: 2.55 Watt
Random Write: 2.55 Watt
Sequential Read: 1.86 Watt
Sequential Write: 2.16 Watt
Random Read/Write: 2.55 Watt
Maximum: 2.16 Watt

Product Dimensions

Height: 5.00 inch
Width: 9.00 inch
Depth: 7.00 inch
Weight: 1.10 lbs

Compatibility Information

Designed For

HPE ProLiant BL Series: BL460c Gen10 (2.5 inch)

HPE ProLiant DL Series: DL325 Gen10 (2.5 inch), DL325 Gen10 Entry (2.5 inch), DL325 Gen10 Performance (2.5 inch), DL325 Gen10 SMB Solution (2.5 inch), DL360 Gen9 (2.5 inch), DL360 Gen9 Base (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360 Gen9 Entry (2.5 inch), DL360 Gen9 Performance (2.5 inch), DL360 Gen9 Special Server (2.5 inch), DL380 Gen10 (2.5 inch), DL380 Gen10 Base (2.5 inch), DL380 Gen10 Entry (2.5 inch), DL380 Gen10 High Performance (2.5 inch), DL380 Gen10 Performance (2.5 inch), DL380 Gen10 Solution (2.5 inch)

HPE ProLiant ML Series: ML110 Gen10 (2.5 inch), ML110 Gen10 Entry (2.5 inch), ML110 Gen10 Performance (2.5 inch), ML110 Gen10 Solution (2.5 inch), ML30 Gen10 (2.5 inch), ML30 Gen10 Entry (2.5 inch), ML30 Gen10 Performance (2.5 inch), ML30 Gen10 Performance (2.5 inch), ML30 Gen10 Solution (2.5 inch), ML30 Gen9 (2.5 inch), ML30 Gen9 Base (2.5 inch), ML30 Gen9 Entry (2.5 inch), ML30 Gen9 Performance (2.5 inch), ML30 Gen9 Solution (2.5 inch)

HPE ProLiant XL Series: XL170r Gen10 (2.5 inch), XL190r Gen10 (2.5 inch), XL230k Gen10 Compute Tray (2.5 inch)

HPE Synergy 480 Gen10 Base Compute Module (2.5 inch), 480 Gen10 Compute Module (2.5 inch), 480 Gen10 Entry Compute Module (2.5 inch), 480 Gen10 Performance Compute Module (2.5 inch), 480 Gen10 Premium Backplane Compute Module (2.5 inch), 480 Gen10 Standard BackPlane Compute Module (2.5 inch), 480 Gen10 w/o Drives Compute Module (2.5 inch), 660 Gen10 Base Compute Module (2.5 inch), 660 Gen10 Compute Module (2.5 inch), 660 Gen10 Entry Compute Module (2.5 inch), 660 Gen10 Performance Compute Module (2.5 inch), 660 Gen10 Premium Compute Module (2.5 inch), 680 Gen9 4S-EX Base Compute Module (2.5 inch), 680 Gen9 4S-EX Compute Module (2.5 inch), 680 Gen9 4S-EX Performance Compute Module (2.5 inch)

Please contact with us if you have any question or to know the compatibility of this with your current server or storage array.

View AllClose

Warranty Information

3 Years Warranty
