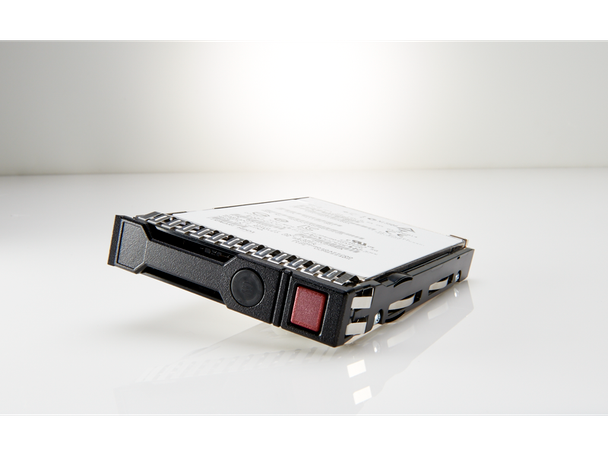

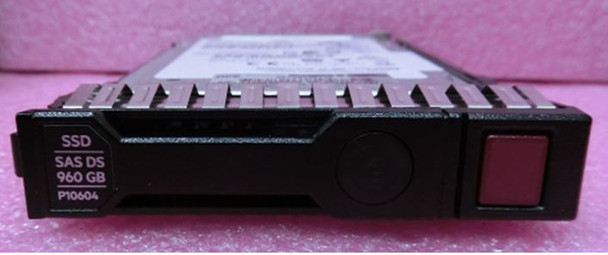

HPE P10448-B21 960GB 2.5in DS SAS-12G SC VS Mixed Use G9 G10 SSD

HPE P10448-B21 960GB 2.5inch Small Form Factor Digitally Signed Firmware SAS-12Gbps Smart Carrier Mixed Use Value SAS Solid State Drive for ProLiant Gen9 Gen10 Servers (New Sealed Spare with 1 Year Warranty)

HPE Servers Mixed Use (MU) Solid State Drives (SSDs) deliver high performance and endurance for applications requiring high random read and write IOPS performance. HPE (MU) SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high-performing drives.
HPE Value SAS SSDs offer a significant performance boost over SATA SSDs with roughly twice the IOPS of SATA SSDs, enabling you to improve transactional database workloads with affordable Value SAS SSDs. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that firmware comes from a trusted source. Icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a "do not remove" button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge, allowing you to determine if any drives are at risk of failure.

High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
HPE solid-state drives are ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.
Achieve higher IOPS to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.
12 Gb/s SAS, 6 Gb/s SATA, and NVMe.

Value SAS SSDs Offer Twice the IOPS of SATA SSDs, Significantly Improving Workload Performance
HPE Value SAS solid-state drives (SSDs) support 12 Gbs, versus SATA SSDs at 6 Gbs.
Optimized for enterprise application workloads, HPE Value SAS SSDs allow you to do more work with fewer servers by improving and consolidating transactional database workloads.
HPE Value SAS SSDs allow you to reduce operating costs for storing, powering and maintaining servers, as well as reducing your data center footprint.
Available in a variety of storage capacities, HPE Value SAS SSDs are the perfect choice for supporting read-intensive and mixed-use applications.

HPE Multi Vendor SSDs Offer Longer SKU Lifecycles and Immediate Availability on SATA SSDs
HPE enhanced its extensive SSD portfolio with a Multi Vendor SSD SKU offering that allows for extended SKU lifecycles, immediately available supply and preferably priced SATA SSDs.
HPE Multi Vendor SSD offering ensures the SATA SSD selected, delivers the minimum level of performance published, or better.

HPE Hard Drives offer the flexibility and expandability to meet your growing storage capacity requirements. The HPE P10448-B21 Mixed Use Solid State Drive has a 2.5 inch form factor and a 12 Gbps data transfer rate. It has a 960 GB capacity. This Small Form Factor Value SAS Digitally Signed Firmware Solid State Drive uses a SAS-12Gbps interface and has 1 Year Warranty.

Specifications

Brand: HPE
MPN: P10448-B21

Option Part Number: P10448-B21
Spare Part Number: P10604-001

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 960 GB
NAND Flash Memory Type: Triple-Level Cell (TLC)
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
Workload Type: Mixed Use
Features: Digitally Signed Firmware
Bundled with: HPE Smart Carrier
Height: 0.60 inch (15 mm)

Performance

30 Days Writes: 5250
Endurance DWPD (Drive Writes Per Day): 3
Drive Transfer Rate: 12 Gb/sec (external)
Random Read IOPS (4KiB, Q=16): 108000
Max Random Read IOPS (4KiB): 155000@Q32
Random Write IOPS (4KiB, Q=16): 47000
Max Random Write IOPS (4KiB): 48000@Q4
Internal Data Rate (Read) MBps: 790
Internal Data Rate (Write) MBps: 635

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 4.26 Watt
Random Read: 4.97 Watt
Random Write: 4.97 Watt
Sequential Read: 6.71 Watt
Sequential Write: 6.95 Watt
Random Read/Write: 6.95 Watt
Maximum: 9.65 Watt

Minimum Dimensions & Weight

Height: 8.75 inch (22.23 cm)
Width: 7.25 inch (18.41 cm)
Depth: 5.50 inch (13.97 cm)
Weight: 1.799 lbs (0.82 kg)

Miscellaneous

Compliant Standards: WEEE

Compatibility Information

Designed for

HPE ProLiant DL Series: DL360 Gen9 (2.5 inch), DL360 Gen9 Base (2.5 inch), DL360 Gen9 CMS (2.5 inch), DL360 Gen9 Entry (2.5 inch), DL360 Gen9 Performance (2.5 inch), DL360 Gen9 Special Server (2.5 inch), DL380 Gen9 (2.5 inch), DL380 Gen9 Base (2.5 inch), DL380 Gen9 Entry (2.5 inch), DL380 Gen9 High Performance (2.5 inch), DL380 Gen9 Performance (2.5 inch), DL380 Gen9 Scale-up SAP HANA Tailored Datacenter Integration Compute Block (2.5 inch), DL380 Gen9 Special (2.5 inch)

HPE ProLiant XL Series: XL230k Gen10 Compute Tray (2.5 inch)

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
