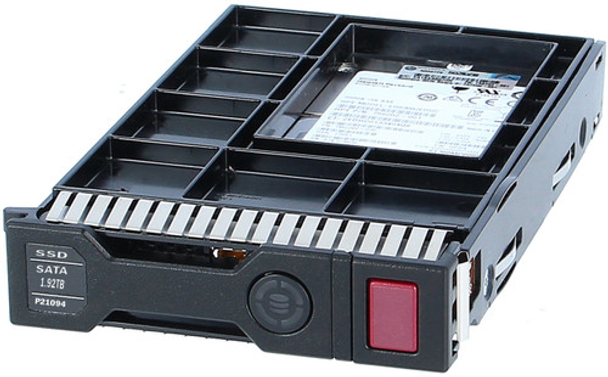

HPE P19982-K21 1.92TB 3.5in DS SATA-6G SCC Mixed Use G10 SSD

HPE P19982-K21 1.92TB 3.5inch Large Form Factor Digitally Signed Firmware SATA-6Gbps Smart Carrier Converter Mixed Use Solid State Drive for ProLiant Gen10 Servers (Refurbished - Grade A with 30 Days Warranty)

HPE Servers Mixed Use (MU) Solid State Drives (SSDs) deliver high performance and endurance for customers with applications requiring a balance of high random read and write IOPS performance. HPE (MU) SSDs typically have an endurance of between <1 and <10 drive writes per day (DWPD). All HPE SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high-performing drives. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that drive firmware comes from a trusted source. The self-describing icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a “do not remove” button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge compatibility in management tools, allowing you to determine if any drives are at risk of failure.

HPE SSDs offer High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
Ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.
Achieve higher IOPS to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.
12 Gb/s SAS, 6 Gb/s SATA, and NVMe.

Provides simplicity and lower total cost of ownership
HPE Solid State Drives deliver reduced power consumption, providing improved IOPS/W versus rotating media while reducing datacenter cooling costs. With compatibility in management tools, SmartSSD Wear Gauge prevents data loss and monitors SSD life.

Increases the efficiency of your server
HPE Solid State Drives (SSDs) allow you to get the most out of your server with more compute per watt with SSDs. Utilizes the unique Power Advisor tool for SSD and system power planning. Uses self-describing LED's that reduces drive activity confusion.

Accelerate workload performance with high performing HPE Solid State Drives
HPE Solid State Drives (SSDs) achieve higher Input/Output Per Second (IOPs) to enhance the performance of your data center. Experience the latest technology in the market and the industry-leading performance of 12 Gb SAS SSDs and NVMe PCIe SSDs. Gives you faster access to data with excellent latency. Provides you with the most complete portfolio of choices across SAS and SATA and first to market with latest technologies.

Delivers the high reliability you can count on in your data center
HPE Solid State Drives (SSDs) are rigorously tested 2.4 million hours to achieve the quality standards you need. You can rely on SSDs in various environments as they can tolerate significantly high operating shock and vibration levels. HPE firmware provides compatibility with ProLiant Server series and HP controllers for consistency of performance. Maintains data accuracy with full data-path error detection. Delivers high availability with power loss protection that continues to protect your data even when the datacenter loses power.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Smart Carrier Converters
HPE Hard Drives with Smart Carrier Converters are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

The HPE P19982-K21 Mixed Use Solid State Drive has a 3.5 inch form factor and a 6 Gbps data transfer rate. It has a 1.92 TB capacity. This Large Form Factor Digitally Signed Firmware Solid State Drive uses a SATA-6Gbps interface and has 30 Days Warranty.

Specification

Brand: HPE
MPN: P19982-K21

Option Part Number: P19982-K21
Spare Part Number: P21094-001

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 1.92 TB
Form Factor: 3.5 inch LFF
Interface: SATA 6Gbps
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier Converter (SCC)
NAND Flash Memory Type: Triple-Level Cell (TLC)
Workload Type: Mixed Use
Connectivity: Single Port
Features: Digitally Signed Firmware
Bundled with: HPE Smart Carrier Converter (SCC)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 7 mm

Performance

30 Days Writes: 17520
Endurance DWPD: 5
Drive Transfer Rate: 600 MBps (external)
MAX Seq. Reads Throughput (MiB/s): 520
MAX Seq. Writes Throughput (MiB/s): 490
Random Read Average Latency uSec (4KiB,Q1): 125
Random Write Average Latency uSec (4KiB,Q1): 37
Random Read IOPS (4KiB, Q=16): 67000
Random Write IOPS (4KiB, Q=16): 52000
Max Random Read IOPS (4KiB): 75000@Q256
Max Random Write IOPS (4KiB): 52000@Q4

Expansion & Connectivity

Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 3.5" LFF

Power Consumption

Power Idle Time: 1.20 Watt
Power Random Read: 1.39 Watt
Power Random Write: 1.39 Watt
Power Sequential Read: 2.24 Watt
Power Sequential Write: 3.23 Watt
Power Random R/W: 1.39 Watt
Maximum Power: 3.23

Compatibility Information

Designed For

HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10 (3.5inch), Medium Solution with HPE ProLiant DL360 Gen10 (3.5inch), Small Solution with HPE ProLiant DL360 Gen10 (3.5inch)

HPE ProLiant DL Series: DL360 Gen10 (3.5inch), DL360 Gen10 All Flash Server for Weka (3.5inch), DL360 Gen10 Base (3.5inch), DL360 Gen10 Compute Server for Cohesity DataPlatform (3.5inch), DL360 Gen10 Entry (3.5inch), DL360 Gen10 High Performance (3.5inch), DL360 Gen10 Low (3.5inch), DL360 Gen10 Network Choice (3.5inch), DL360 Gen10 Performance (3.5inch), DL360 Gen10 Performance for Cohesity DataPlatform (3.5inch), DL360 Gen10 Premium (3.5inch), DL360 Gen10 SMB (3.5inch), DL360 Gen10 SMB Network Choice (3.5inch), DL360 Gen10 Solution (3.5inch), DL360 Gen10 Special Server (3.5inch), DL380 Gen10 (3.5inch), DL380 Gen10 All Flash Server for Datera (3.5inch), DL380 Gen10 Base (3.5inch), DL380 Gen10 Entry (3.5inch), DL380 Gen10 Entry SMB (3.5inch), DL380 Gen10 for Cohesity DataPlatform (3.5inch), DL380 Gen10 for SAP HANA Compute Block (3.5inch), DL380 Gen10 High Performance (3.5inch), DL380 Gen10 Hybrid Server for Datera (3.5inch), DL380 Gen10 Network Choice (3.5inch), DL380 Gen10 Network Choice for CTERA (3.5inch), DL380 Gen10 Network Choice for SAP HANA Compute Block (3.5inch), DL380 Gen10 Performance (3.5inch), DL380 Gen10 Server for CTERA (3.5inch), DL380 Gen10 SMB (3.5inch), DL380 Gen10 SMB Networking Choice (3.5inch), DL380 Gen10 Solution (3.5inch), DL385 Gen10 (3.5inch), DL385 Gen10 Base (3.5inch), DL385 Gen10 Entry (3.5inch), DL385 Gen10 High-Performance (3.5inch), DL385 Gen10 Performance (3.5inch), DL385 Gen10 SMB (3.5inch), DL385 Gen10 Solution (3.5inch), DL388 Gen10 (3.5inch)

Please contact with us if you have any question or to know the compatibility of this with your current server or storage array.
