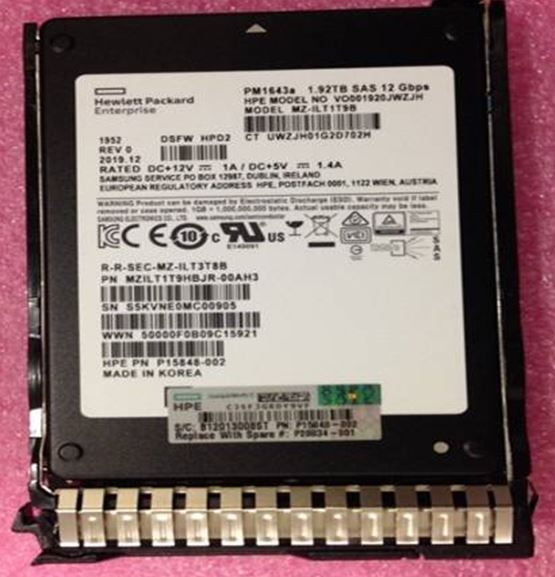

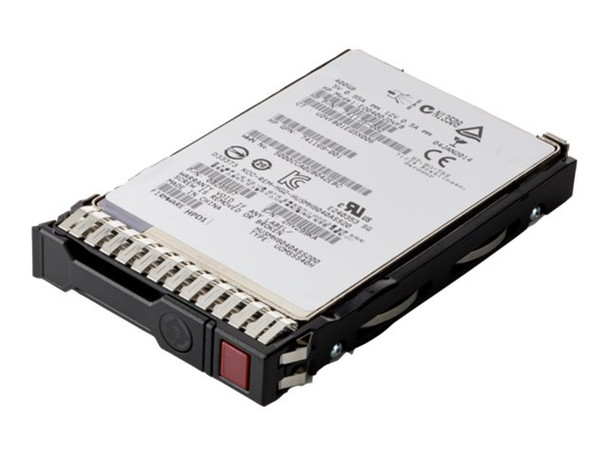

HPE P20834-001 1.92TB 2.5in DS SAS-12G SC Read Intensive G9 G10 SSD

HPE P20834-001 1.92TB 2.5inch SFF Digitally Signed Firmware SAS-12Gbps Smart Carrier Read Intensive Solid State Drive for ProLiant Gen9 Gen10 Servers (Brand New with 3 Years Warranty)

HPE Server Read Intensive (RI) Solid State Drives (SSDs) deliver high performance and endurance for applications requiring high random read IOPS performance. HPE (RI) SSDs typically have an endurance of <1 drive writes per day. All HPE SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high performing drives. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that drive firmware comes from a trusted source. The self-describing icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a "do not remove" button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge compatibility in management tools, allowing you to determine if any drives are at risk of failure.

High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
HPE 12Gb SAS Read Intensive (RI) Solid State Drives (SSDs) are ideal for read caching, social media, web servers and boot/swap.
Achieve high IOPS and lower latency to enhance the performance of your data center
Maintain data accuracy with full data-path error detection
Choose from a broad portfolio of enhanced solutions in a wide variety of capacities
HPE 12Gb SAS SSDs and HPE 12Gb Value SAS SSDs

HPE Value SAS SSDs Offer Twice the IOPS of SATA SSDs, Significantly Improving Workload Performance
HPE Value SAS Solid State Drives (SSDs) support 12 Gbs, versus SATA SSDs at 6 Gbs
Optimized for enterprise application workloads, HPE 12Gb Value SAS SSDs allow you to do more work with fewer servers by improving and consolidating transactional database workloads
HPE 12Gb Value SAS SSDs allow you to reduce operating costs for storing, powering and maintaining servers, as well as reducing your data center footprint
Available in a variety of storage capacities, HPE 12Gb Value SAS SSDs are the perfect choice for supporting read intensive and mixed use applications

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

Smart Carriers
HPE Solid State Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

Serial Attached SCSI (SAS) is the logical evolution of SCSI including its long-established software advantage and the serial physical connection interface. With enterprise storage requirements escalating and becoming more complex factors such as larger capacity greater density security scalability and accessibility are more critical than ever. Enterprise data centers must be online all the time fulfill requests from numerous users simultaneously allow for constant growth and expansion and be maintained while in operation. Serial Attached SCSI (SAS) meets all these demands while providing the highest performance.

HPE Solid State drives offer the speed, flexibility and expandability to meet your growing storage capacity requirements. The HPE P20834-001 Read Intensive Solid State Drive has a 2.5 inch form factor and a 12 Gbps data transfer rate. It has a 1.92 TB capacity. This Small Form Factor Digitally Signed Firmware Solid State Drive uses a SAS-12Gbps interface and comes with 3 Years Warranty.

Specifications

Brand: HPE
MPN: P20834-001

Option Part Number: P19905-B21
Spare Part Number: P20834-001

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 1.92 TB
Form Factor: 2.5 inch SFF
Interface: SAS 12Gbps
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
Workload Type: Read Intensive
Features: Digitally Signed Firmware (DS)
Bundled with: HPE Smart Carrier (SC)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15.00 mm

Performance

30 Days Writes: 3424
Endurance DWPD (Drive Writes Per Day): 3.4
Drive Transfer Rate: 12 Gb/sec (external)
Random Read IOPS (4KiB, Q=16): 115000
Max Random Read IOPS (4KiB): 175000@Q128
Random Write IOPS (4KiB, Q=16): 70000
Max Random Write IOPS (4KiB): 70000@Q32

Expansion & Connectivity

Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 2.5" SFF

Power Requirement

Max Power Consumption: 9.03 Watts

Environmental Parameters

Min Operating Temperature: 32 °F
Max Operating Temperature: 140 °F

Product Dimensions & Weight

Height: 5.75 inch (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.508 lbs (0.68 kg)

Compatibility Information

Designed for

HPE ProLiant DL Series: DL180 Gen10 SMB (2.5 inch), DL20 Gen10 (2.5 inch), DL20 Gen10 Entry (2.5 inch), DL20 Gen10 Performance (2.5 inch), DL20 Gen10 solution (2.5 inch), DL325 Gen10 (2.5 inch), DL325 Gen10 Base (2.5 inch), DL325 Gen10 Entry (2.5 inch), DL325 Gen10 Performance (2.5 inch), DL325 Gen10 Plus (2.5 inch), DL325 Gen10 SMB Solution (2.5 inch), DL325 Gen10 Solution (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Network Choice (2.5 inch), DL360 Gen10 Premium (2.5 inch), DL360 Gen10 Remote Office Branch Office Server for Cohesity DataPlatform (2.5 inch), DL360 Gen10 SMB (2.5 inch), DL360 Gen10 SMB Network Choice (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL380 Gen10 Entry SMB (2.5 inch), DL380 Gen10 for Cohesity DataPlatform (2.5 inch), DL380 Gen10 Network Choice (2.5 inch), DL380 Gen10 Network Choice for SAP HANA Compute Block (2.5 inch), DL380 Gen10 NVMe All Flash Server for Datera (2.5 inch), DL380 Gen10 SMB (2.5 inch), DL380 Gen10 SMB Networking Choice (2.5 inch), DL380 Gen10 Solution (2.5 inch), DL385 Gen10 (2.5 inch), DL385 Gen10 Base (2.5 inch), DL385 Gen10 Entry (2.5 inch), DL385 Gen10 High-Performance (2.5 inch), DL385 Gen10 Performance (2.5 inch), DL385 Gen10 Plus (2.5 inch), DL385 Gen10 Plus Entry (2.5 inch), DL385 Gen10 SMB (2.5 inch), DL385 Gen10 Solution (2.5 inch), DL388 Gen10 (2.5 inch), DL580 Gen10 (2.5 inch), DL580 Gen10 Base (2.5 inch), DL580 Gen10 Entry (2.5 inch), DL580 Gen10 Performance (2.5 inch)

HPE ProLiant ML Series: ML110 Gen10 (2.5 inch), ML110 Gen10 Entry (2.5 inch), ML110 Gen10 Performance (2.5 inch), ML110 Gen10 Solution (2.5 inch)

HPE Synergy 480 Gen10 Base Compute Module (2.5 inch), 480 Gen10 Compute Module (2.5 inch), 480 Gen10 Entry Compute Module (2.5 inch), 480 Gen10 Performance Compute Module (2.5 inch), 480 Gen10 Premium Backplane Compute Module (2.5 inch), 480 Gen10 Standard BackPlane Compute Module (2.5 inch), 480 Gen10 w/o Drives Compute Module (2.5 inch), 660 Gen10 Base Compute Module (2.5 inch), 660 Gen10 Compute Block (2.5 inch), 660 Gen10 Compute Module (2.5 inch), 660 Gen10 Entry Compute Module (2.5 inch), 660 Gen10 Performance Compute Module (2.5 inch), 660 Gen10 Premium Compute Module (2.5 inch)

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
