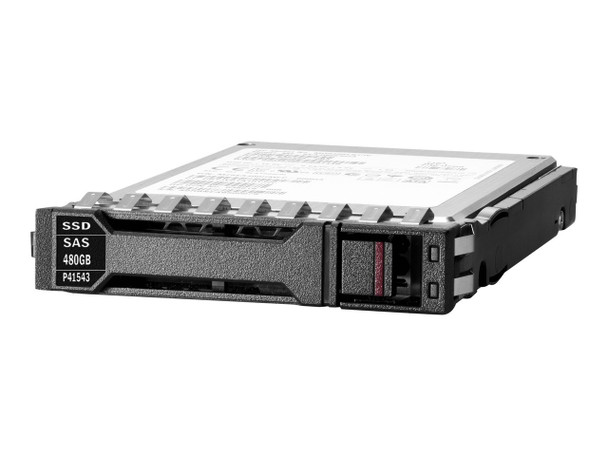

HPE P41543-001 480GB 2.5in DS SATA-6G BC Mixed Use G10+ SSD

HPE P41543-001 480GB 2.5inch SFF Digitally Signed Firmware SATA-6Gbps Basic Carrier Mixed Use Solid State Drive for ProLiant Gen10 Plus Servers (Brand New with 3 Years Warranty)

HPE Servers Mixed Use (MU) Solid State Drives (SSDs) deliver high performance and endurance for applications requiring high random read and write IOPS performance. HPE (MU) SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high-performing drives.
HPE Value SAS SSDs offer a significant performance boost over SATA SSDs with roughly twice the IOPS of SATA SSDs, enabling you to improve transactional database workloads with affordable Value SAS SSDs. HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that firmware comes from a trusted source. Icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a "do not remove" button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge, allowing you to determine if any drives are at risk of failure.

High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
HPE solid-state drives are ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.
Achieve higher IOPS to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.
12 Gb/s SAS, 6 Gb/s SATA, and NVMe.

Value SAS SSDs Offer Twice the IOPS of SATA SSDs, Significantly Improving Workload Performance
HPE Value SAS solid-state drives (SSDs) support 12 Gbs, versus SATA SSDs at 6 Gbs.
Optimized for enterprise application workloads, HPE Value SAS SSDs allow you to do more work with fewer servers by improving and consolidating transactional database workloads.
HPE Value SAS SSDs allow you to reduce operating costs for storing, powering and maintaining servers, as well as reducing your data center footprint.
Available in a variety of storage capacities, HPE Value SAS SSDs are the perfect choice for supporting read-intensive and mixed-use applications.

HPE Multi Vendor SSDs Offer Longer SKU Lifecycles and Immediate Availability on SATA SSDs
HPE enhanced its extensive SSD portfolio with a Multi Vendor SSD SKU offering that allows for extended SKU lifecycles, immediately available supply and preferably priced SATA SSDs.
HPE Multi Vendor SSD offering ensures the SATA SSD selected, delivers the minimum level of performance published, or better.

Digitally Signed Firmware: Prevent unauthorized access to your data with the expansion of integrated HPE Digitally Signed Firmware (DS) on new drives; providing the security and assurance that drive firmware comes from a trusted source and protects against malicious attacks.

The HPE P41543-001 Mixed Use Solid State Drive has a 2.5 inch form factor and a 6 Gbps data transfer rate. It has a 480 GB capacity. This Small Form Factor Digitally Signed Firmware Solid State Drive uses a SATA-6Gbps interface and comes with 3 Years Warranty.

Specifications

Brand: HPE
MPN: P41543-001

Option Part Number: P40545-B21
Spare Part Number: P41543-001

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 480 GB
Form Factor: 2.5 inch SFF
Interface: SATA 6Gbps
NAND Flash Memory Type: Triple-level cell (TLC)
Plug Type: Hot Pluggable
Connectivity Type: Single
Carrier Type: Basic Carrier (BC)
Workload Type: Mixed Use
Bundled with: HPE Basic Carrier (BC)
Features: Digitally Signed Firmware (DS)
Platform Supported: HPE ProLiant Rack
Height: 15.00 mm

Performance

30 Days Writes (TB): 3000
Endurance DWPD (Drive Writes Per Day): 3.50
Drive Transfer Rate: 6 Gbps (external)
MAX Seq. Reads Throughput (MiB/s): 530
MAX Seq. Writes Throughput (MiB/s): 480
Random Read Average Latency uSec (4KiB,Q1): 110
Random Write Average Latency uSec (4KiB,Q1): 52
Random Read IOPS (4KiB, Q=16): 68000
Random Write IOPS (4KiB, Q=16): 40000
MAX Random Read IOPS (4KiB): 76000@Q32
MAX Random Write IOPS (4KiB): 42000@Q32

Expansion & Connectivity

Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 1.31 Watt
Random Read: 2.94 Watt
Random Write: 2.94 Watt
Sequential Read: 2.32 Watt
Sequential Write: 3.33 Watt
Random Read/Write: 2.94 Watt
MAX: 3.33 Watt

Product Dimensions & Weight

Height: 5.75 (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)

Compatibility Information

Designed for

HPE ProLiant DL Series: DL20 Gen10 Plus (2.5inch), DL20 Gen10 Plus Base (2.5inch), DL20 Gen10 Plus Entry (2.5inch), DL20 Gen10 Plus High Performance (2.5inch), DL20 Gen10 Plus Performance (2.5inch), DL325 Gen10 Plus V2 (2.5inch), DL325 Gen10 Plus V2 Base (2.5inch), DL325 Gen10 Plus V2 for Weka Base Tracking (2.5inch), DL325 Gen10 Plus V2 Performance (2.5inch), DL345 Gen10 Plus (2.5inch), DL345 Gen10 Plus Base (2.5inch), DL345 Gen10 Plus Entry (2.5inch), DL360 Gen10 Plus (2.5inch), DL360 Gen10 Plus All-NVMe Server for Software Defined Storage (2.5inch), DL360 Gen10 Plus for Weka Base Tracking (2.5inch), DL360 Gen10 Plus Network Choice (2.5inch), DL365 Gen10 Plus (2.5inch), DL380 Gen10 Plus (2.5inch), DL380 Gen10 Plus Network Choice (2.5inch)

HPE ProLiant ML Series: ML30 Gen10 Plus (2.5inch), ML30 Gen10 Plus Entry (2.5inch), ML30 Gen10 Plus Performance (2.5inch)

HPE SimpliVity 325 Gen10 Plus V2 Node (2.5inch)

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
