HPE StoreFabric 853011-001 SN1100Q 16Gb DP PCIe3 Fibre Channel HBA

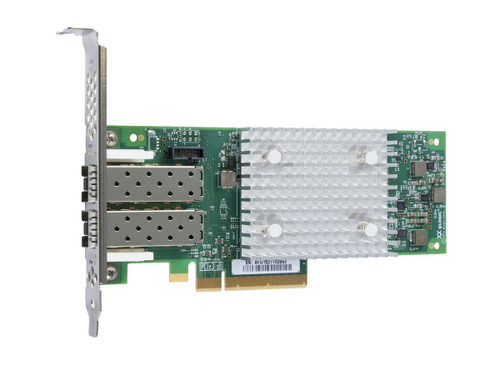

HPE StoreFabric 853011-001 SN1100Q 16Gbps Dual Port Low Profile PCI Express 3.0 Fibre Channel Host Bus Adapter (New Sealed Spare with 1 Year Warranty)

The HPE StoreFabric SN1100Q 16Gb Host Bus Adapters deliver twice the I/O performance of 8 Gb HBAs, it takes storage networking performance and efficiency to the next level. They enable rapid storage and retrieval of critical information when using high bandwidth cloud applications and storage intensive applications such as backup, database transactions and rich media. Designed for increased virtual machine density and bandwidth requirements, the SN1100Q 16Gb HBA products enable more applications and virtual machines to run on a single server and port, resulting in reduced cabling. The SN1100Q 16Gb HBAs are backward compatible with 8 Gb and 4 Gb networks and will protect your current and future IT investments.

High-performance Fibre Channel Host Bus Adapters
The HPE StoreFabric SN1100Q 16Gb Host Bus Adapters deliver twice the I/O performance of 8 Gb Fibre Channel (FC) HBAs. Moving to 16 Gb technology provides the infrastructure required for the more powerful servers and data intensive applications in virtualized environments. When using storage intensive applications like backup/restore, database transactions, virtualization and rich media, the improved I/O performance enables faster storage and retrieval of data.

High Performance and Enhanced Capability For Critical Workloads and High SLA Environments
The HPE StoreFabric SN1100Q 16Gb Fibre Channel Host Bus Adapters supports for N_Port ID virtualization (NPIV) and industry standards-based Class-specific control (CS_CTL), provides end-to-end quality of service (QoS). Delivers 16Gbps line rate per physical port, and increases the number of virtual machines (VMs) per each physical HBA Port that can be supported. Advanced diagnostics capabilities when used in conjunction with HPE StoreFabric B-series FC switches can reduce troubleshooting and downtime with support for features like D-port diagnostics, Link Cable Beaconing (LCB), Read Diagnostic Parameters (RDP), enhanced FDMI, FC Ping and FC Trace Route. Data center administrators do not need to concern themselves with multiple requests from the virtualized servers potentially creating conflict. Improves host utilization and enhances application performance.

Additional Bandwidth
The HPE StoreFabric SN1100Q 16Gb Host Bus Adapters allow IT departments to do more with less: less hardware, less power, less cooling, less personnel, and less budget. They optimize existing resources by deploying an effective adaptive server solutions. Scale physical resources through consolidation and virtualization.

The HPE StoreFabric 853011-001 SN1100Q low profile host bus adapters provide Fibre Channel connectivity to select ProLiant servers. Data transfer rate 16 Gbps data FC transfer rates are well-suited for enterprise network and storage device connections. The P9D94A is a dual port unit with a Low-Profile PCI Express 3.0 form factor and has 1 Year Warranty.

Specifications

Brand: HPE
MPN: 853011-001

Option Part Number: P9D94A
Spare Part Number: 853011-001

General

Device Type: Host Bus Adapter
Form Factor: Plug-in Card - Low Profile
Interface (Bus) Type: PCI Express 3.0

Networking

Ports: 16Gb Fibre Channel x 2
Connectivity Technology: Wired
Cabling Type: Fiber optic
Data Link Protocol: 4Gb Fibre Channel (SW), 8Gb Fibre Channel (SW), 16Gb Fibre Channel (SW)
Data Transfer Rate: 14.025 Gbps
Features: Auto-negotiation

Expansion & Connectivity

Expansion Slots: 2 (total) / 0 (free) x SFP+
Interfaces: 2 x 16Gb Fibre Channel (Short Wave) - LC multi-mode

Software / System Requirements

OS Required: SuSE Linux Enterprise Server, Red Hat Enterprise Linux, Microsoft Windows Server 2008 (32/64-bits), VMware ESXi, VMware ESX, Microsoft Windows Server 2008 R2 (64-bits)

Product Dimensions & Weight

Height: 4.50 (11.40 cm)
Width: 8.50 inch (21.60 cm)
Depth: 12.00 inch (30.50 cm)
Weight: 1.50 lbs (0.68 kg)

Compatibility Information

Designed For

HPE Apollo Series: 4200 Gen10, 4200 Gen10 384TB 25Gb Capacity Server for Cohesity DataPlatform, 4200 Gen10 384TB Capacity Server for Cohesity DataPlatform, 4510 Gen10

HPE Nimble Storage: dHCI Large Solution with HPE ProLiant DL380 Gen10

HPE ProLiant DL Series: DL345 Gen10 Plus, DL345 Gen10 Plus Entry, DL365 Gen10 Plus, DL380 Gen10, DL380 Gen10 48TB Server for Cohesity DataPlatform, DL380 Gen10 96TB Server for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB Networking Choice, DL385 Gen10 Plus, DL385 Gen10 Plus Entry, DL388 Gen10 Network Choice

HPE ProLiant XL Series: XL190r Gen10, XL190r Gen10 for HPE Ezmeral Container Platform, XL270d Gen10, XL270d Gen10 for HPE Ezmeral Container Platform, XL645d Gen10 Plus

HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 H Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node, 380 Gen10 Node

Please contact with us if you have any question or to know the compatibility of this with your current server or storage array.
