HPE VO0400KEFJB 400GB 2.5in NVMe PCIe Read Intensive G8 G9 G10 SSD

HPE VO0400KEFJB 400GB 2.5inch SFF PLP Multi-Level Cell NVMe U.2 PCIe x4 Lanes Value Endurance SCN Read Intensive Solid State Drive for ProLiant Generation8 Generation9 Generation10 Servers (New Bulk Pack with 90 Days Warranty)

HPE Server Read Intensive (RI) Solid State Drives (SSDs) deliver high performance and endurance for applications requiring high random read IOPS performance.
HPE (RI) SSDs are backed by over 3.35 million hours of testing and qualification ensuring reliable, high performing drives.
HPE Value SAS SSDs offer a significant performance boost over SATA SSDs with roughly twice the IOPS of SATA SSDs, enabling you to improve transactional database workloads with affordable Value SAS SSDs.
HPE Digitally Signed Firmware prevents unauthorized access to your data by providing the assurance that drive firmware comes from a trusted source. Icons on the HPE Smart Carrier take the guesswork out of a drive’s status, and a "do not remove" button prevents data loss from human error. You can also monitor the lifespan of your SSD with HPE SmartSSD Wear Gauge, allowing you to determine if any drives are at risk of failure.

High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
HPE solid-state drives are ideal for big data analytics, cloud computing, active archiving, database applications, and data warehousing.
Achieve higher IOPs to enhance the performance of your data center.
Maintain data accuracy with full data-path error detection.
Choose from a broad portfolio of enhanced solutions in a wide variety of capacities.
12 Gb/s SAS, 6 Gb/s SATA, NVMe, M.2, and M.2 Enablement Kits.

HPE Value SAS SSDs Offer Twice the IOPS of SATA SSDs, Significantly Improving Workload Performance
HPE Value SAS solid-state drives (SSDs) support 12 Gbs, versus SATA SSDs at 6 Gbs.
Optimized for enterprise application workloads, HPE Value SAS SSDs allow you to do more work with fewer servers by improving and consolidating transactional database workloads.
HPE Value SAS SSDs allow you to reduce operating costs for storing, powering and maintaining servers, as well as reducing your data center footprint.
Available in a variety of storage capacities, HPE Value SAS SSDs are the perfect choice for supporting read-intensive and mixed-use applications.

HPE Multi Vendor SSDs Offer Longer SKU Lifecycles and Immediate Availability on SATA SSDs
HPE enhanced its extensive SSD portfolio with a Multi Vendor SSD SKU offering that allows for extended SKU lifecycles, immediately available supply and preferably priced SATA SSDs.
HPE Multi Vendor SSD SKU offering ensures the SATA SSD selected, delivers the minimum level of performance published, or better.

Smart Carriers
HPE Hard Drives with smart carriers are designed to provide an interface to communicate critical status and management information. System status LED icons and a spinning activity ring reflecting the data-writing process notify users of the current system status. A blue LED located behind the handle can be activated remotely to guide users to a specific drive tray, while a do-not-remove icon positioned on the tray's eject button lights up to warn users when the removal of the drive would cause data loss.

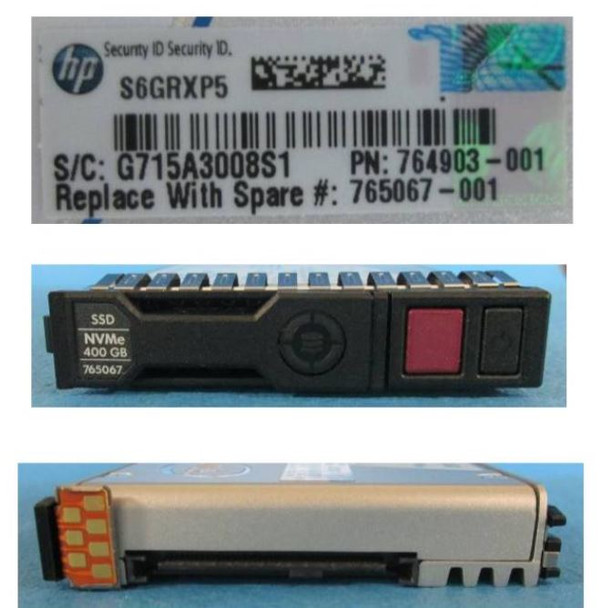

The HPE VO0400KEFJB NVMe U.2 Read Intensive Solid State Drive has a 2.5 inch form factor and supports Power Loss Protection (PLP). It has a 400GB capacity. This Small Form Factor NVMe Solid State Drive uses a PCIe interface and has 90 Days Warranty.

Specifications

Brand: HPE
MPN: VO0400KEFJB

Option Part Number: 764904-B21
Spare Part Number: 765067-001
Model Number: VO0400KEFJB
Assembly Number: 764903-001

General

Device Type: Solid State Drive - Hot-Swap
Capacity: 400GB
Form Factor: 2.5 inch SFF
Interface: NVMe U.2 PCIe
NAND Flash Memory Type: Multi-Level Cell (MLC)
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier NVMe (SCN)
Workload Type: Read Intensive
Features: Power Loss Protection (PLP), x4 Lanes
Bundled with: HPE Smart Carrier NVMe (SCN)
Platform Supported: HPE ProLiant Rack/Tower/BladeSystem Servers/Synergy
Height: 15.00 mm (0.60 inch)

Performance

Endurance DWPD (Drive Writes Per Day): 0.3
MAX Seq. Reads Throughput (MiB/s): 2200
MAX Seq. Writes Throughput (MiB/s): 950
Random Read Average Latency uSec (4KiB,Q1): 90
Random Write Average Latency uSec (4KiB,Q1): 40
Random Read IOPS (4KiB, Q=16): 150000
Random Write IOPS (4KiB, Q=16): 26500
MAX Random Read IOPS (4KiB): 445000@Q128
MAX Random Write IOPS (4KiB): 26500@Q1
4KiB Random 70% Read / 30% Write, Queue 32 Performance(IOPS) VI-1: 55000
4KiB Random 50% Read / 50% Write, Queue 32 Performance(IOPS) VI-2: 48000

Expansion & Connectivity

Interfaces: 1 x PCIe NVMe
Compatible Bay: 2.5" SFF

Power Consumption

Idle Time: 4.00 Watt
Random Read: 8.14 Watt
Random Write: 8.28 Watt
Sequential Read: 7.55 Watt
Sequential Write: 10.00 Watt
Random Read/Write: 7.81 Watt

Compatibility Information

Designed for

HPE ProLiant BL Series: BL460c Gen10 (2.5 inch)

HPE ProLiant DL Series: DL360 Gen10 Base (2.5 inch), DL360 Gen10 Entry (2.5 inch), DL360 Gen10 High Performance (2.5 inch), DL360 Gen10 Low (2.5 inch), DL360 Gen10 Performance (2.5 inch), DL360 Gen10 SMB (2.5 inch), DL360 Gen10 Solution (2.5 inch), DL380 Gen10 (2.5 inch), DL380 Gen10 Base (2.5 inch), DL380 Gen10 Entry (2.5 inch), DL380 Gen10 Entry SMB (2.5 inch), DL380 Gen10 for Cohesity DataPlatform (2.5 inch), DL380 Gen10 High Performance (2.5 inch), DL380 Gen10 Network Choice (2.5 inch), DL380 Gen10 Network Choice for SAP HANA Compute Block (2.5 inch), DL380 Gen10 Performance (2.5 inch), DL380 Gen10 SMB (2.5 inch), DL380 Gen10 Solution (2.5 inch), DL388 Gen10 (2.5 inch), DL388 Gen9 (2.5 inch), DL388 Gen9 Base (2.5 inch), DL580 Gen8 (2.5 inch), DL580 Gen8 Base (2.5 inch), DL580 Gen8 High Performance (2.5 inch), DL580 Gen9 (2.5 inch), DL580 Gen9 Database (2.5 inch), DL580 Gen9 SAP HANA Scale-out Base Configuration (2.5 inch), DL580 Gen9 SAP HANA Scale-up Base Configuration (2.5 inch)

Contact us with any questions or to verify this model’s compatibility with your current server or storage array.
